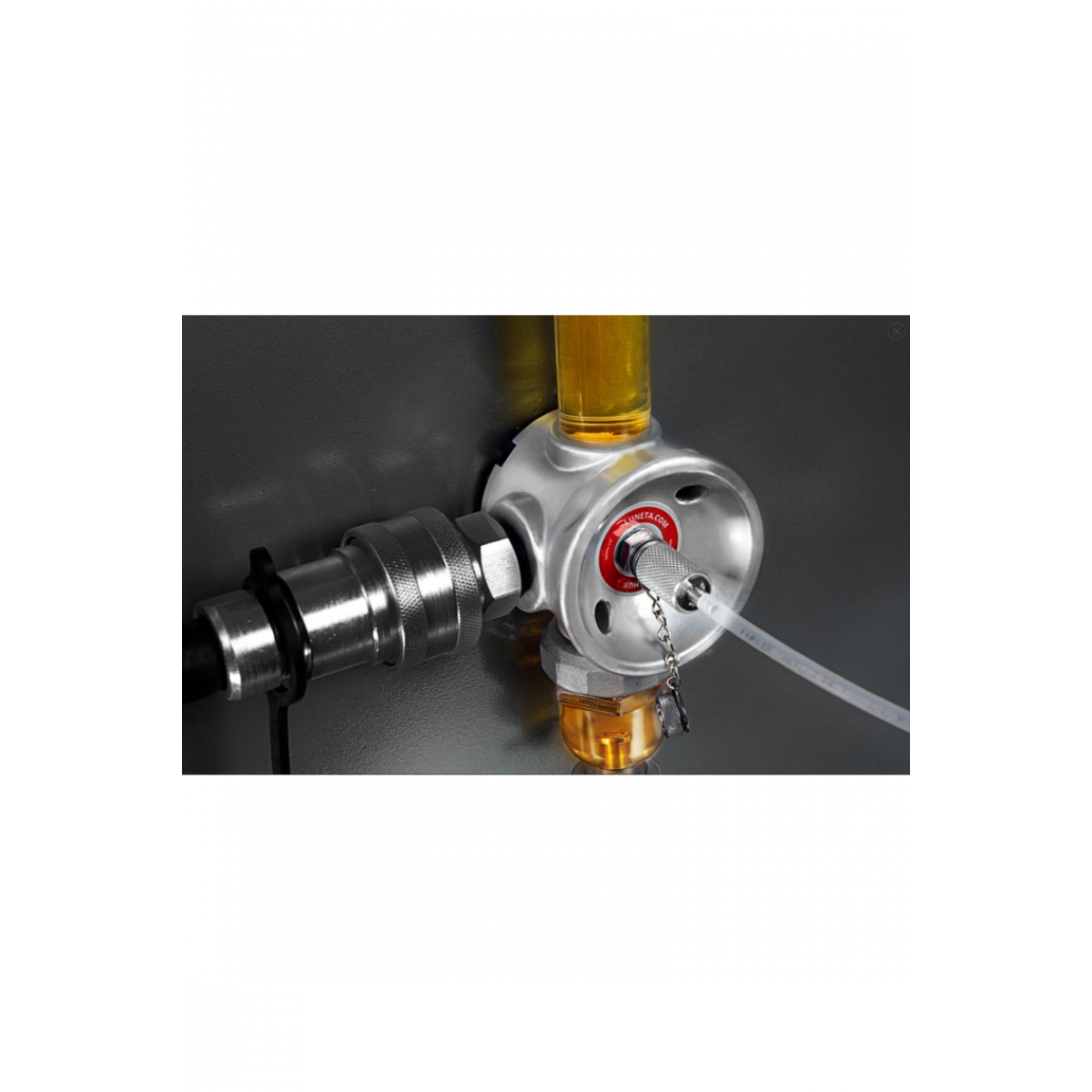

Multi Port Hub Kit - 3/4" NPT


Luneta Multi Port Hub Kit - 3/4" NPT

0 ratings | Submit a rating
$323.68  Cart is in US Dollar
The Hub of Lubricant Monitoring

Luneta's The Hub delivers more port versatility then anything else on the market.

Brand: Luneta
Part Number:
HUB075NPT
Availability: Please Contact




OVERVIEW

The Hub has four lateral ports allows you to install oil level sight glasses, BS&W Bowls, sample valves, drain valves, filter cart, etc. all at the same time. And with a high flow sample port, the Hub can tackle any sampling needs you have.

SPECIFICATIONS

  • Recommended Temperature Range: Range is -13°F to +400°F
  • Recommended PSI: 500 psi working and 125 psi for sampling
  • Pilot Tube: 1/4" Stainless steel, 12" long
  • Width: 3.5"
  • Length: 2.9"
  • Diameter: 3.5"
  • Shipping weight: 3.5lbs (for qty 1.)
  • Thread Size: 3/4" NPT

FEATURES

  • Body Material: Heavy-duty powder-coated cast aluminum and zinc plated steel
  • Sample Port: High flow, easy access with shielded design
  • Easy Install: Hub Body is easily attached with supplied bolts and can be adjusted every 45-degress to achieve optimal orientation
  • Lateral Ports: (2) 1" NPT and (2) 3/4" NPT, Includes (4) low profile plugs for sealing lateral ports when not in use and installation hex key is included
