Oil Level Indicator 9"


Des-Case Oil Level Indicator 9 inch

0 ratings | Submit a rating
$69.59  Cart is in US Dollar
Oil Level Indicator

Monitor the oil level in your machine machinery.

Brand: Des-Case
Part Number:
DC-OLI9




OVERVIEW

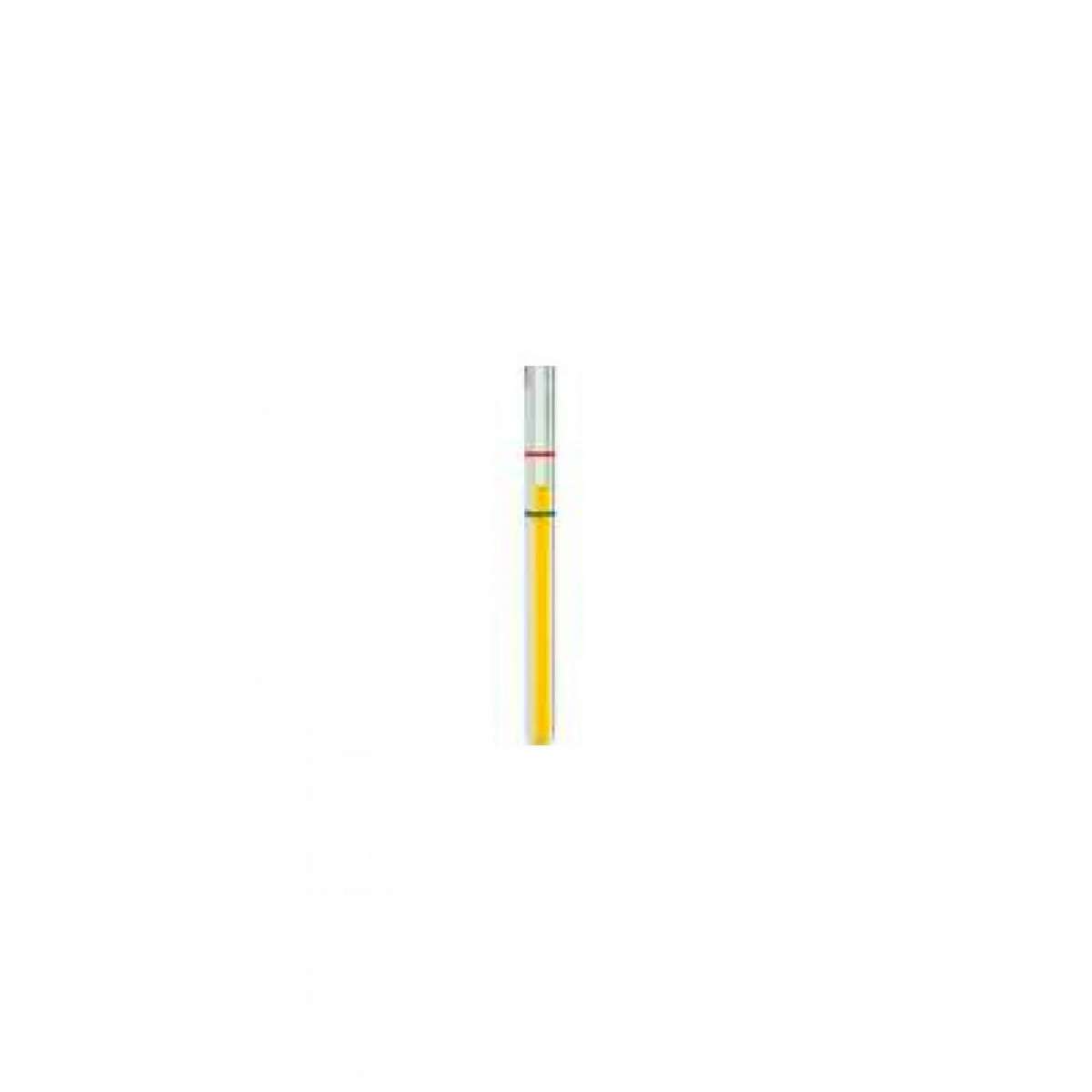

The Oil Level Indicator (OLI) was developed in response to the need of maintenance professionals to gauge the oil level inside large tanks, gearboxes and reservoirs. The OLI is a clear acrylic column with 1/2" NPT threads at each end. Red and green level marker stickers are included with the OLI to mark upper and lower limits, or to designate running oil level and idle oil level. Utilizing the drain port, operators can visually monitor the fluid level within reservoirs.

SPECIFICATIONS

  • Material:
  • Stain-resistant acrylic
  • Brass fittings standard (15" and above)
  • Recommended Temperature Range:
  • -40F to 200F
  • -40C to 93C
  • Maximum Operating Pressure:
  • 65 psi
  • 4.48 bar
  • Chemical Compatibility:
  • All gear, mineral and synthetic oils
  • Available Options:
  • Lengths ranging from 3" to 15"
  • Stainless steel fittings
  • Des-Case ND-2 Breather 0.3 micron absolute (Beta 1000) (15" and larger models)
  • Custom lengths available upon request

FEATURES

  • Key Benefits
  • 360 degree view of oil clarity and level
  • Easy to install
  • Closed-loop or filtered installation options
  • Multiple lengths available
  • APPLICATIONS:
  • Pumps
  • Gearboxes
  • Storage Tanks
