Spin-On Filter (Paper 12µ)


Des-Case Spin-On Filter (Paper 12µ)

0 ratings | Submit a rating
$90.90  Cart is in US Dollar
Drum Topper Replacement Elements

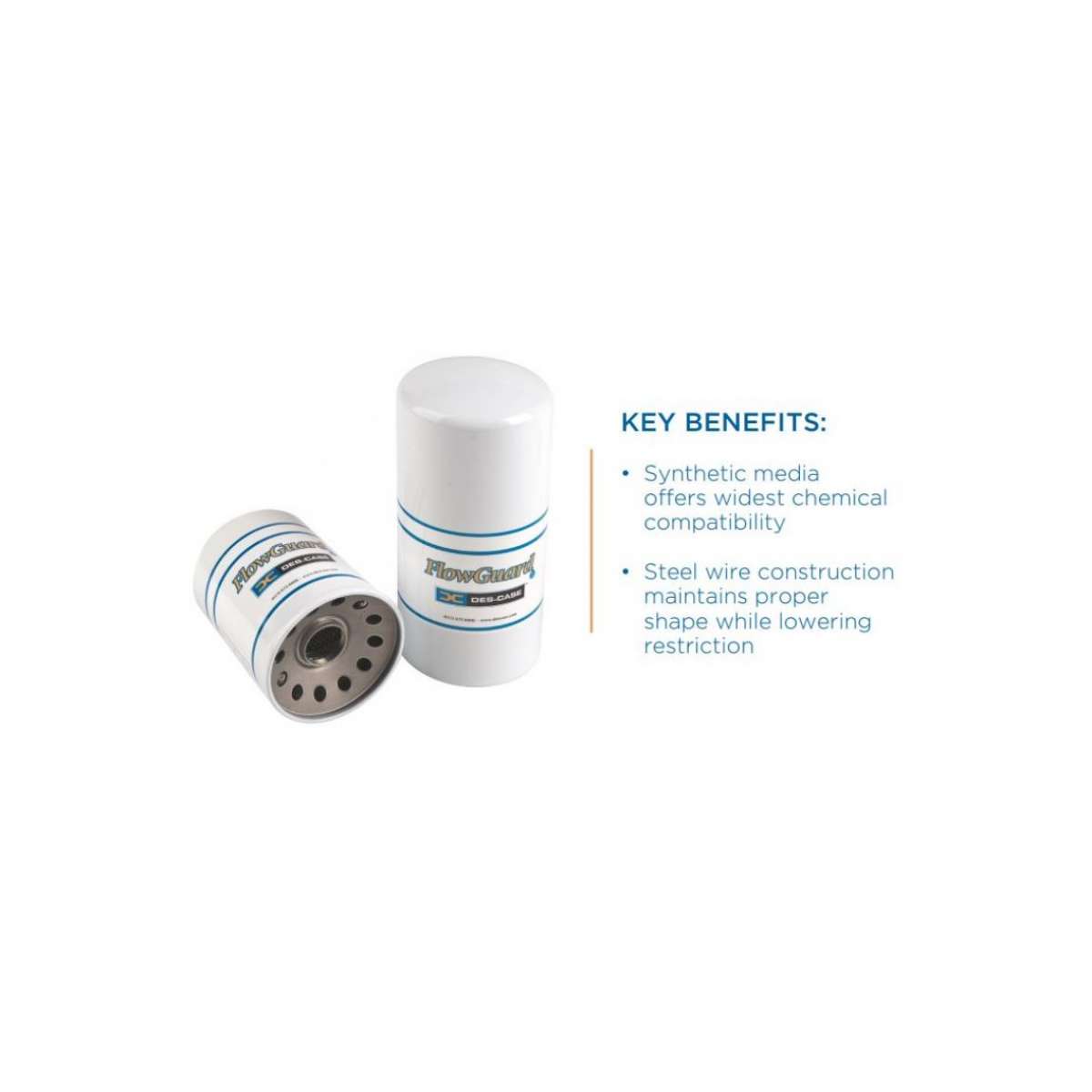

Spin on filter recommended for use on Des-Case FlowGuard products. These filters are suitable for use with petroleum based fluids up to 200 PSI.

Brand: Des-Case
Part Number:
FC-MF




SPECIFICATIONS

  • Micron Rating: 12 (absolute)
  • Filter Media: Glass fiber elements (synthetic)
  • Diameter: 128 mm (5.06 in)
  • Length: 168 mm (6.63 in)
  • Element Thread: 1 1/2 - 16 UNF
  • Beta-Ratio: B>200 - 9.7
  • Dirt Holding Capacity: 91g
  • Filtration Area: 4051 sq cm (628 sq in)

FEATURES

  • Working Pressure: 200 PSI (14 bar)
  • Operating Temperature: -32°C to 100°C (-25°F to 212°F)
  • Use strap-on chain wrench for element removal
  • For use with petroleum based fluids only
