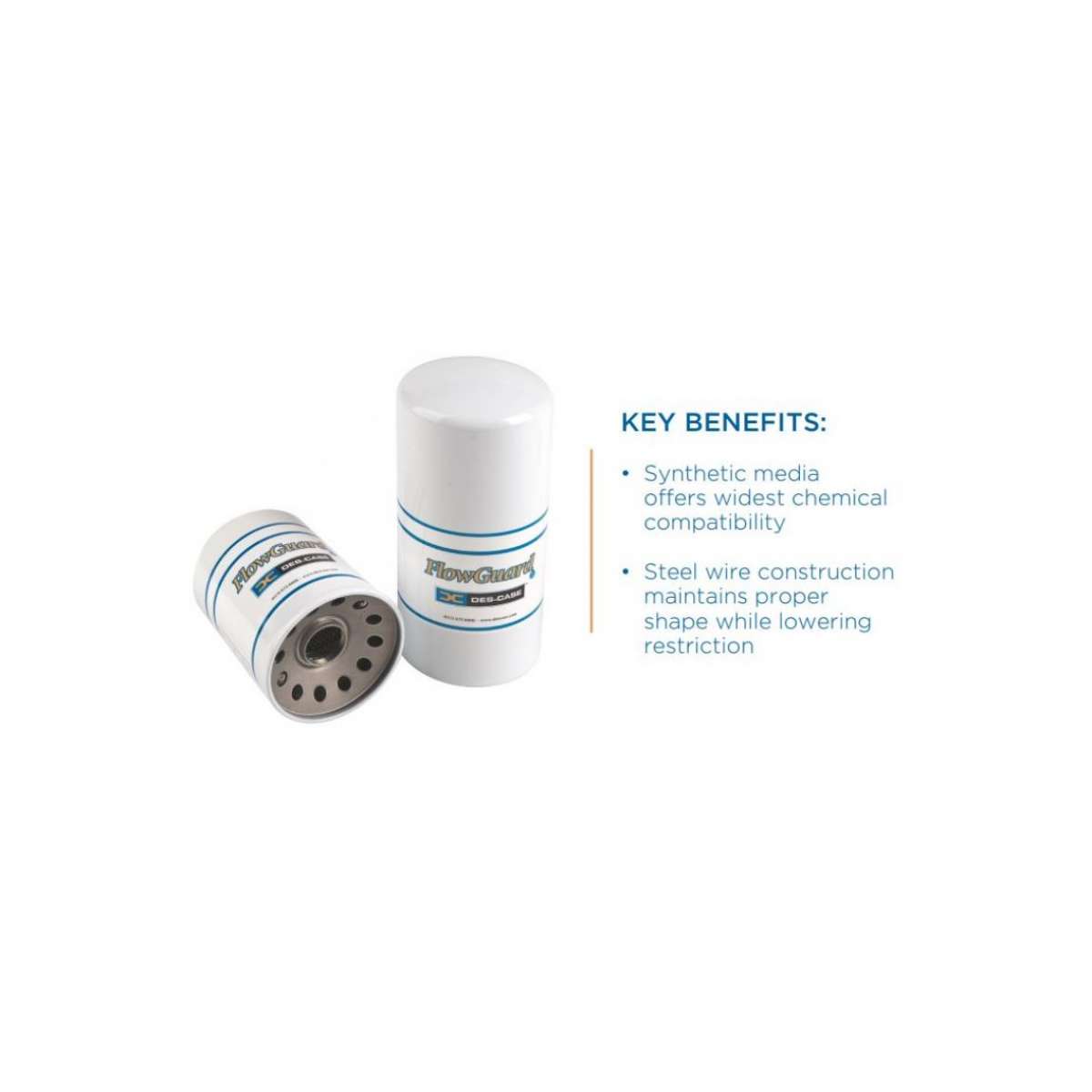

Des-Case 2.5 Micron Filter Element - Beta 1000
0 ratings | Submit a rating
$132.05
Flowguard Replacement Elements
Spin on filter recommended for use on Des-Case FlowGuard products. These filters are suitable for use with petroleum based fluids up to 200 PSI.
Spin on filter recommended for use on Des-Case FlowGuard products. These filters are suitable for use with petroleum based fluids up to 200 PSI.
Brand: Des-Case
Part Number:
DC-S10000S08ABU (FC-EF)
SPECIFICATIONS
- Micron Rating: 2.5 (absolute), beta 1000
- Filter Media: Glass fiber elements (synthetic)
- Diameter: 128 mm (5.06 in)
- Length: 270 mm (10.63 in)
- Element Thread: 1 1/2 - 16 UNF
- Beta-Ratio: B3>200 - <2
- Dirt Holding Capacity: 85 g
- Filtration Area: 8168 sq cm (1266 sq in)
FEATURES
- Working Pressure: 200 PSI (14 bar)
- Operating Temperature: -32°C to 100°C (-25°F to 212°F)
- Use strap-on chain wrench for element removal
- For use with petroleum based fluids only
