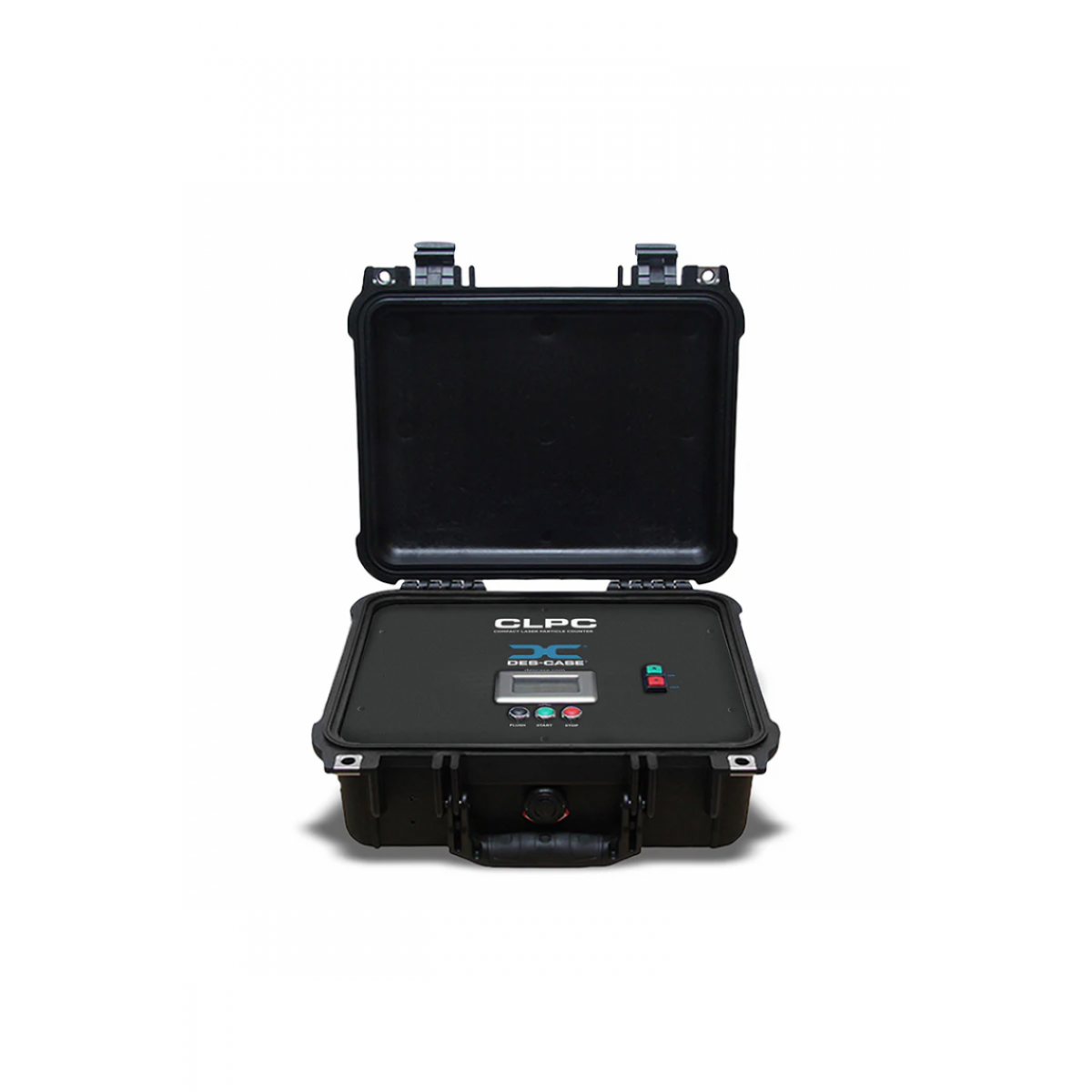

Des-Case Compact Laser Particle Counter With RH moisture and temperature sensor, for Mineral Oil

With RH moisture and temperature sensor, for Mineral Oil A compact, lightweight and budget-friendly particle counter featuring twin laser technology for accurate insight into oil cleanliness levels in your equipment. Specifications TECHNOLOGY Twin laser and twin optical diode detectors Based Light Extinction Automatic Optical Contamination Monitor CALIBRATION Each unit individually calibrated with ISO Medium Test Dust (MTD) based on ISO 11171, on equipment certified by I.F.T.S. To ISO 11943 ANALYSIS RANGE ISO 4406:2017 Code 8 to 24 NAS 1638 Class 2 to 12 AS4059 Rev. E. Table 1 Size Codes 2-12 AS4059 Rev. E. Table 2 Size Codes, A:000 to 12, B:00 to 12, C:00 to 12, D:2 to 12, E: 4 to 12,F: 7 to 12

• Voltage 9-36 VDC
• Power Integrated rechargeable battery
• Pressure Range 29 - 5802 PSI (2 - 400 bar)
• Viscosity Range up to 400 cSt
• Weight 13.2 lb (6 kg)
• Fluid Temperature 41° F - 176° F (+5° C - +80° C )
• Ambient Temperature 14° F - 140° F (-10° C - +60° C)
• Temperature Measurement ± 37.4° F (± 3° C )
• Particle Sizing >4, 6, 14, 21, 25, 38, 50, 70 µm(c) to ISO 4406:2017 Standard
• Accuracy Better than 3% typical
• Data Storage 600 tests
• Communication Options USB communication port
• Environmental Protection IP51 (open lid)
• Moisture Sensing %RH (relative humidity) ± 3%
• Outer Case Material Injection Molded Ultra High Impact structural copolymer
• Software Des-Case View (included)
• Sample Volume / Test Time (seconds) 0.27 oz (8 ml) (short): 2:50
• 0.50 oz (15 ml) (normal): 5:00
• 1.01 oz (30 ml) (dynamic): 10:00
• 0.81 oz (24 ml) (bottle sampler): 8:00
• 0.51 oz (15 ml) (continuous): 5:00
