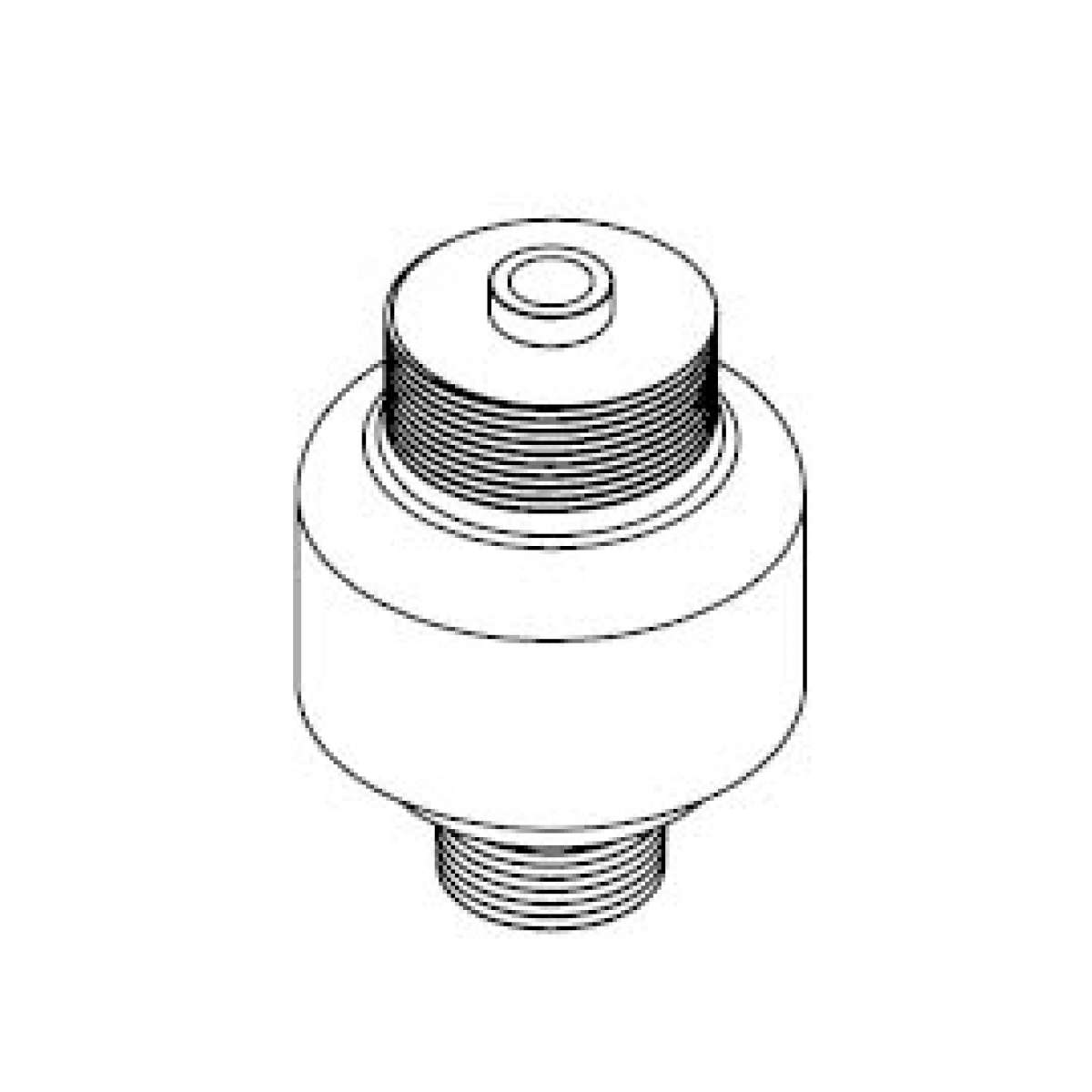

Des-Case Flapper Valve Adapter for Extreme Duty Breather DC-XD-6
1 ratings | Submit a rating
$143.82
Prevent Oil Mist
The vent valve adapter helps prevent oil mist and slosh from entering the breather, thereby extending the life of the product.
The vent valve adapter helps prevent oil mist and slosh from entering the breather, thereby extending the life of the product.
Brand: Des-Case
Part Number:
DC-XDVA-16M
OVERVIEW
Des-Case Extreme Duty breathers remove moisture and particulate contamination before they enter your system, so your equipment runs clean and dry. Use of a vent valve adapter helps prevent oil mist and slosh from entering the breather, thereby extending the life of the product. A preventative maintenance program incorporating Des-Case breathers will extend (and enhance) the life of your fluid power equipment.
SPECIFICATIONS
- Unit Height 3.1" (7.9 cm)
- Diameter 2.3" (5.8 cm)
- Venting Airflow: 19 scfm @ 1 PSI
- Connection Size : 1" NPT
FEATURES
- Designed for use with Des-Case Extreme Duty breathers only
- One-way fluorosilicone check valves with cracking pressure of 1" H2O (0.04 PSI)
- One-way silicone "duck bill" check valve with intake airflow of 2.5 scfm @ 1 PSI
- Zinc plated carbon steel
- Allows for higher, single-direction (venting) airflow
- Extends breather life
