3-D BullsEye - 1/4" NPT


Des-Case 3-D BullsEye - 1/4 inch NPT

0 ratings | Submit a rating
$41.24  Cart is in US Dollar
3-D BullsEye - 1/4" NPT

3-D Bullseye sight plugs

Brand: Des-Case
Part Number:
DC-3DB0250




OVERVIEW

The 3-D Bullseye makes the job of a lubrication technician or maintenance manager easier. The standard sight windows on oil reservoirs make it difficult to view the oil level, stain easily, and must be replaced often.

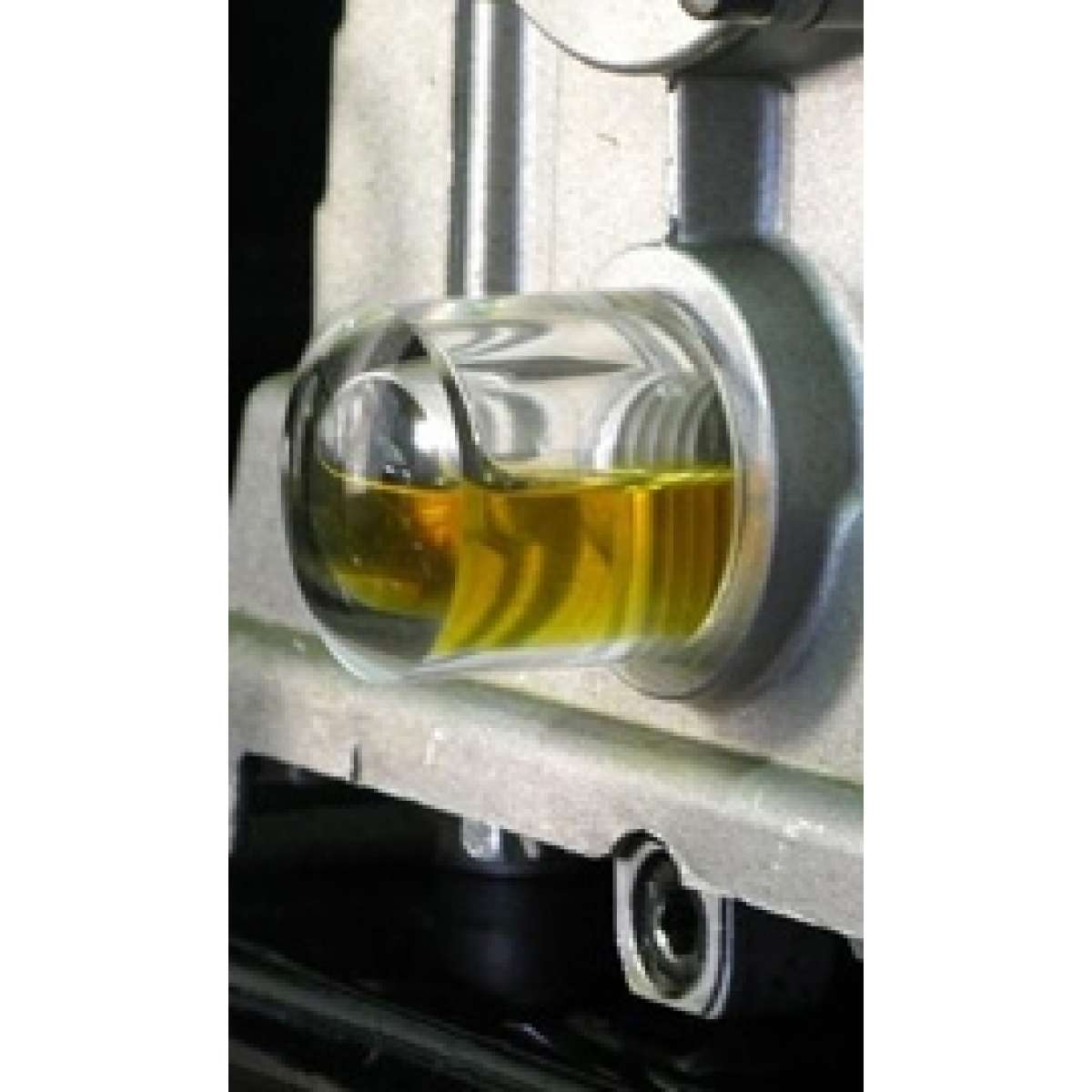

The 3-D BullsEye is a clear cylinder made from one solid piece of acrylic with threading on one end and a rounded polished end for easier viewing of the oil on the other.

SPECIFICATIONS

  • Thread Sizes: 1/4" NPT
  • (picture shown is a standard unit)
  • Sizes 1/2" NPT and above are a solid piece of cast arcylic with male threads
  • Sizes 1/4" and 3/8" NPT come with female threads and brass nipples included
  • All metric sizes come with female threads and brass nipple and gasket included

FEATURES

  • Lubrication Reliability (5R`s)
  • Highly stain-resistant acrylic construction for years of accurate oil level monitoring
  • Excellent resistance to hydrocarbon and petroleum-based products, hydraulic fluids, most silicone fluids and fuels
  • Revolutionary easy-view design is visible from virtually any angle, minimizing false positives
  • Temperature range from exceedingly low temperatures of at least -40°F (-40°C) to as high as 230°F (110°C) at atmospheric pressure
  • Universal fit - fits almost all oil reservoirs
