The First Best-Practice Oil Transfer Container That Fully Isolates Oil From the Environment

The Des-Case Oil Transfer Container is engineered for clean, contamination-free transfer and storage of small oil volumes — with sealed breathers, ISO B quick connects, a precision trigger spout, and a color-coding system that prevents cross-contamination in your lube room.

1, 1.8 & 2.6 Gallon ISO VG 680 11 Color Codes ISO B Compatible

Clean Oil Transfer, Engineered as a System

The Oil Transfer Container is the first best-practice solution that fully isolates lubricant from airborne contamination and moisture during transfer and small-volume storage. Sealed dispensing and pump lids, optional desiccant or non-desiccant breathers, and 1/2″ ISO B quick-connect ports replace open funnels and exposed jugs with a closed-loop system.

A precision trigger mechanism with locking detent gives you variable flow control and prevents drips, while a specially designed spring and o-ring assembly keeps lubricants sealed until the trigger is engaged. Square HDPE containers store roughly 27% more volume per square foot than round jugs, freeing up valuable lube-room real estate.

Cross-contamination is prevented through an eleven-color-coding system applied across the interchangeable spouts, pump caps, and collar rings — the only color-coded components in the system — so a single base container can serve any lubricant in your plant with a quick component swap. Pair it with the 2″×3″ Des-Case color & pattern lubricant tagging labels for a complete identification program.

Oil Transfer Container at a Glance

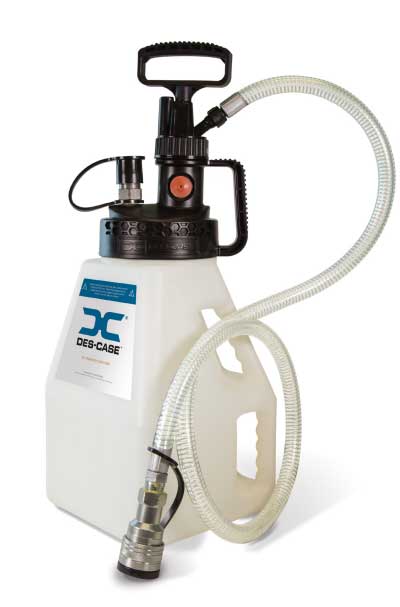

Standard configuration shown. All options can be selected in the ordering section below.

Container Sizes

1 gallon / 4 L, 1.8 gallon / 7 L, 2.6 gallon / 10 L — square HDPE

Container Material

HDPE — chemically compatible with mineral & most synthetic oils and additive packages

Dispensing Lid

Nylon, 304 stainless steel, steel, Buna-N, HDPE and PTFE wetted materials; ergonomic handle with hex & ridge design

Pump Lid

304 stainless steel, steel, fluoro-silicone, silicone, nylon, PVC, polyurethane, aluminum, vinyl and HDPE wetted materials

Spout Options

5″ rigid (1″ tip), 8″ rigid (1″ / 1/2″ / 1/4″ tip) or 16″ extended; 11 color options

Trigger

Variable flow with locking mechanism; spring + o-ring seal until trigger is engaged

Breather Options

Standard vent plug, or non-desiccant (DC-ND-2) or desiccant (DC-BB) breather upgrade

Fill Port

Optional 1/2″ ISO B quick connect for closed-loop filling

Pump

Heavy-duty hand pump with D-ring downstroke handle — ~12 strokes per liter

Pump Hose

5 ft or 10 ft; dispensing nozzle or 1/2″ ISO B coupler termination

Spout Cap

Snap-on cap that clips to the side of the spout during use

Tagging

2″ × 3″ color & pattern lubricant identification labels (Des-Case system)

Max Viscosity

ISO VG 680 — 3000 ssu / 648 cSt at 100°F (38°C)

Temperature Range

-40°F to 176°F (-40°C to 80°C) ambient

Chemical Compatibility

Mineral-based industrial oils and most synthetic oils

Space Efficiency

Square geometry stores ~27% more volume per square foot than round containers

11 Colors to Prevent Cross-Contamination

Spouts, pump caps and pump rings are the only color-coded components — so a single base container handles any lubricant in your plant with a quick component swap. Pair with Des-Case’s 2″ × 3″ color & pattern labels for a complete identification program.

Silver

White

Beige

Black

Orange

Red

Purple

Blue

Light Green

Yellow

Dark Green
