2 Wheeled Hand Truck Filter Cart

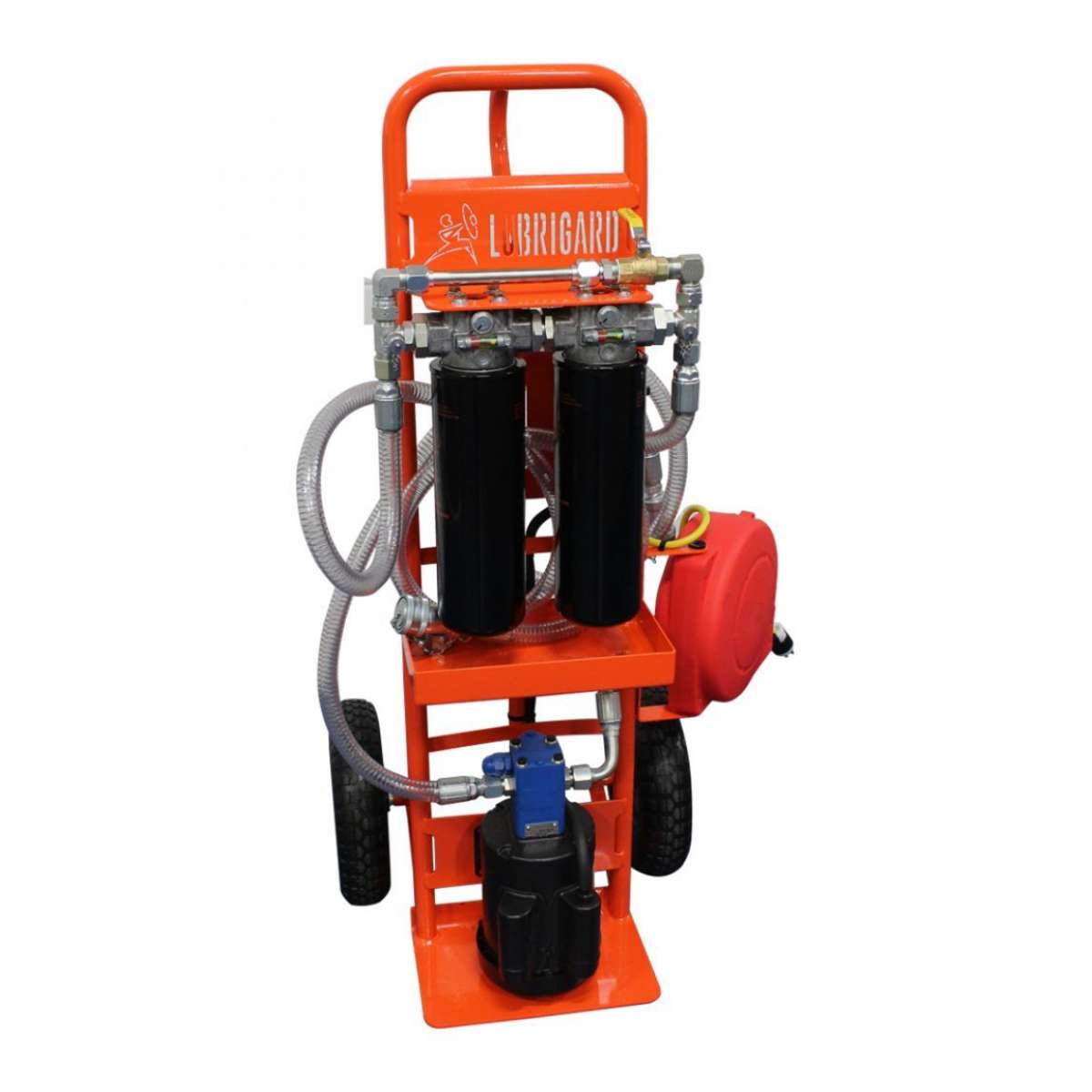

Lubrigard 2 Wheeled Hand Truck Filter Cart

0 ratings | Submit a rating
$6,966.50  Cart is in US Dollar
Simple and Powerful.

Lubrigard 1HP, 2GPM SPCL

Brand: Lubrigard
Part Number:
LG-HTD5WR102SH1SQ125C1-ES




OVERVIEW

The Y2K HT-D Series Filter Cart is our signature filter cart and is an excellent choice for "off-line" filtration in a wide variety of settings. Extremely mobile and lightweight, this filter cart has all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680). This filter cart is completely customizable to fit all of your needs.

Typical Applications:

  • Filtering contaminated system
  • Flushing new or repaired systems
  • Pre-filtering new oil
  • Transferring oils
  • Topping off reservoirs
  • Collecting oil samples for analysis
  • Dispensing new oil

SPECIFICATIONS

  • 2 Wheeled Hand Truck Filter Cart
  • Flat/Maintenance Free Tires
  • Dual 50 PSI Bypass Filter Heads W/ Color Coded Differential Pressure Indicators
  • Water Removal First Stage P1048WR
  • 10 Micron Beta 1000 Second Stage P1063
  • 2" Lipped Drip Pan Under The Elements
  • 1HP Motor TEFC 110VAC
  • 2 GPM Heavy Duty Cast Iron Gear Pump W/ 150 PSI Relief Valve
  • 7' Suction and Discharge Hoses With ISO B Quick Disconnects (1" & 3/4" PVC w/hydraulic Jumper)
  • 25' Electric Cord
  • Textured Black Powder Coat: Oil Resistive Grip For Safety
  • External Gauge (Color Coded External Gauge)
  • Suction inlet Strainer

FEATURES

  • Frame: Carbon steel with drip pan
  • Paint: Industrial powder coat; various colors available
  • Motor: 1HP, 115vac, 60Hz or Pneumatic Air
  • Filter Heads: Medium pressure, steel heads
  • Pump: Heavy duty steel gear pump. Available in 1, 2, 5 and 10 GPM
  • Connections: ISO A, ISO B, Flush Face and Camlock options available
  • Hoses: 7ft. Clear PVC, steel reinforced hose or hydraulic hose
  • Power Switch: Sealed on/off power switch
  • Filter Indicators: Slide bar indicator triggers at 50psid when elements need to be changed
  • Pump Relief: Opens at 150psi
  • Weight: Approx 125lbs (will vary depending on options)
