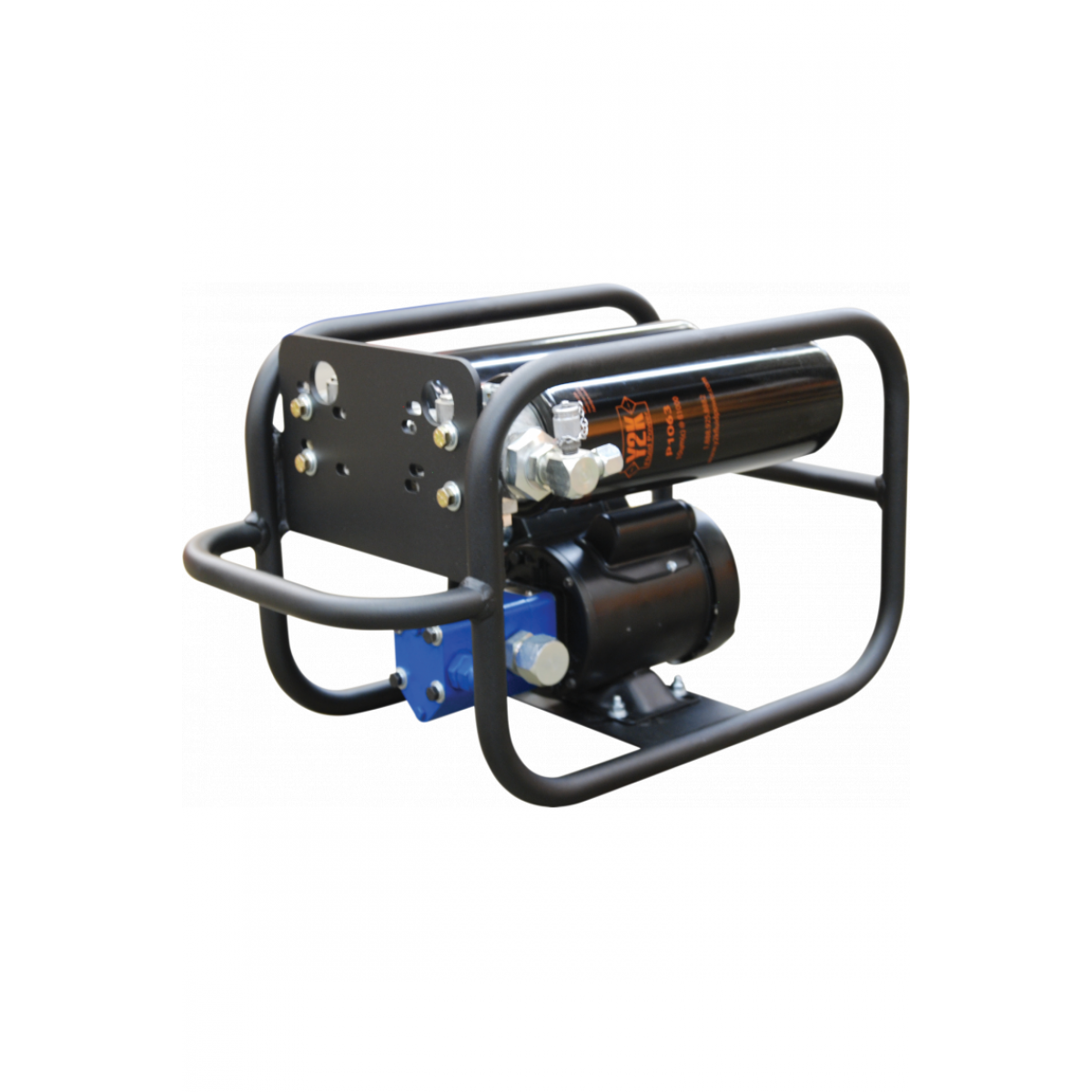

D Series Drum Topper, 1HP, 5 GPM, SPCL


Lubrigard D Series Drum Topper, 1HP, 5 GPM, SPCL

0 ratings | Submit a rating
$5,331.88  Cart is in US Dollar
Compact and Portable

D Series Drum Topper - Compact and Portable.

Brand: Lubrigard
Part Number:
LG-DTD51075SH1SQ14P2-BO




OVERVIEW

Compact and portable, the DTD Drum Topper is designed to fit perfectly on top of a 55-gallon drum. When portability and convenience is of the utmost importance, the Drum Topper has your back. With the ability to be used horizontally or vertically, our drum topper is the most versatile in the industry. It has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100ºF within ambient temperature ranges of -15ºF to 150ºF. All Y2K products are 100% customizable upon request.

SPECIFICATIONS

Aluminum Drum Topper w/ Rubber Feet 1 HP Motor TEFC. 110VAC 4' Electric Cord 5GPM Heavy Duty Cast Iron Gear Pump w/ 150 PSI relief Dual 50 PSI Bypass Filter Heads With Slide Type Color Coded Differential Pressure Indicators First Stage 10 Micron Beta P1063 Second Stage 7 Micron Beta 2000 P1065 7' Suction and Discharge Hoses With ISO B Quick Disconnects (1" and 3/4") 1" & 3/4" ISO B Quick Disconnects w/ Steel Dust Plugs *Ability to stand vertical or Horizontally On a Standard 55 Gallon Drum Manual Bypass Oil Sample Ports Up/Down Stream **Two Handles for carrying Textured Red Powder Coat NOTE: ITEM MAY NOT BE EXACTLY AS SHOWN
