Filter Pak, 1HP, 5GPM, SPCL


Lubrigard Filter Pak, 1HP, 5GPM, SPCL

0 ratings | Submit a rating
Price: Call for price 1-800-268-2131  Cart is in US Dollar
Simple and Powerful.

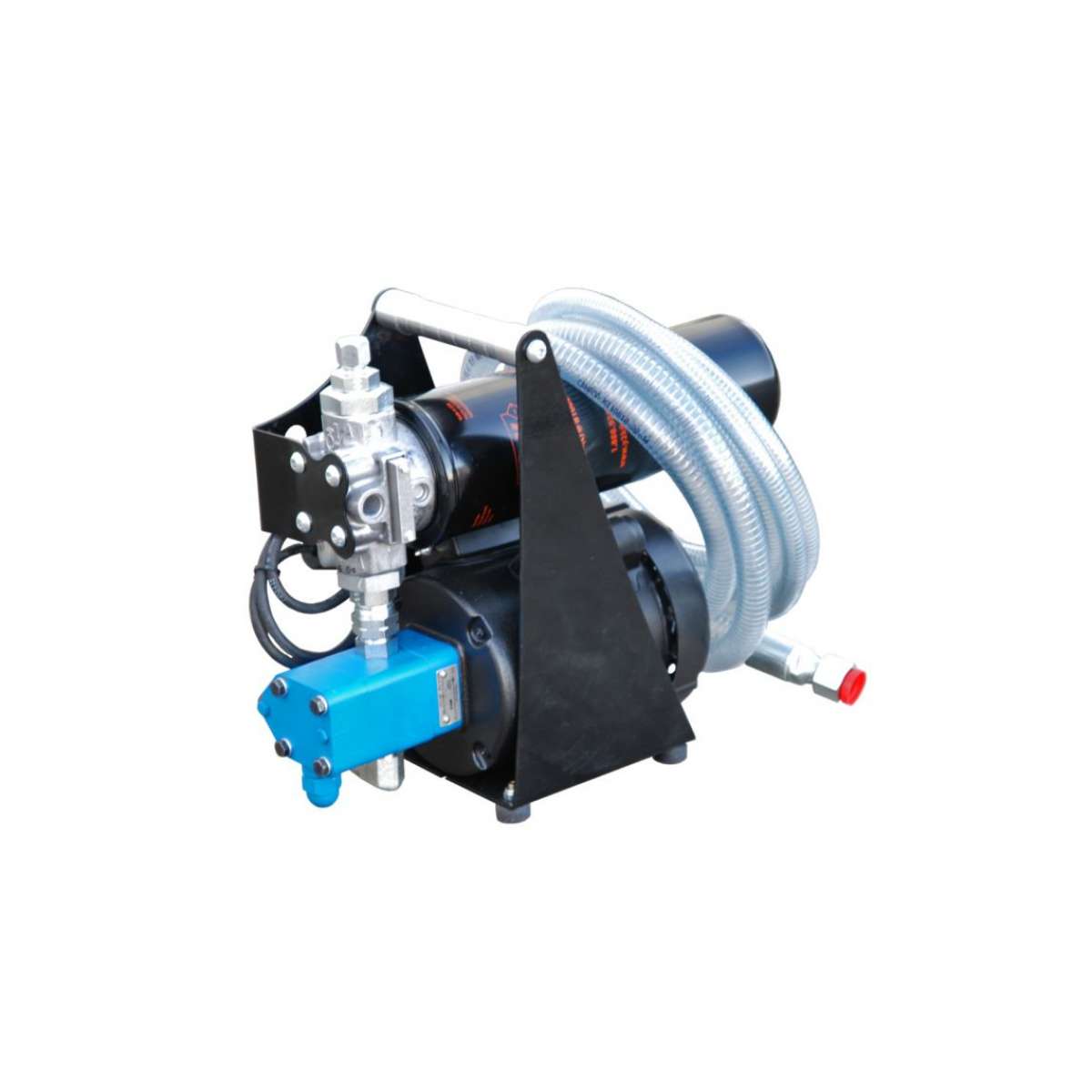

Lubrigard Filter Pak, 1HP, 5GPM, SPCL

Brand: Lubrigard
Part Number:
LG-FPAD575SH1SQ14P




OVERVIEW

Perfect for situations with minimal storage space, the FP-D FilterPak combines style and convenience in a compact design that allows the operator to carry it just about anywhere. This powerhouse has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100°F within ambient temperature ranges of -15°F to 150°F. All Y2K products are 100% customizable upon request.

Typical Applications:

  • Filtering contaminated system
  • Flushing new or repaired systems
  • Pre-filtering new oil
  • Transferring oils
  • Topping off reservoirs
  • Dispensing new oil

SPECIFICATIONS

  • Aluminum Filter Pak
  • 1HP Motor TEFC 110VAC
  • 5 GPM Cast Iron Gear Pump w/ 150PSI Relief Valve
  • Single Aluminum 50 PSI Bypass Filter Head With Color Coded Differential Pressure Indicators
  • 7 Micron Beta 2000 Filter Element P1065
  • 7' Suction and Discharge Hoses With ISO B Quick Disconnects (1" & 3/4")
  • 4' Electric Cord

FEATURES

  • Frame: heavy duty, diamond plated aluminum frame
  • Paint: Multiple color options available
  • Motor: 1/2HP, 115vac, 60HZ
  • Filter Heads: Medium pressure, steel heads
  • Pump: Heavy duty steel gear pump. Available in 1, 2 and 5 GPM
  • Connections: Various quick connect options with steel dust plugs
  • Hoses: 2 ea, 7 ft. Clear PVC, steel reinforced hose or hydraulic hose
  • Power Switch: On/Off toggle switch
  • Filter Indicators: Slide bar indicator triggers at 50psid when elements need to be changed
  • Pump Relief: Opens at 150psi
  • Weight: Approx 50lbs (will vary depending on options)
