Filter Pak, Air Motor, 1GPM


Lubrigard Filter Pak, Air Motor, 1GPM

0 ratings | Submit a rating
Price: Call for price 1-800-268-2131  Cart is in US Dollar
Simple and Powerful.

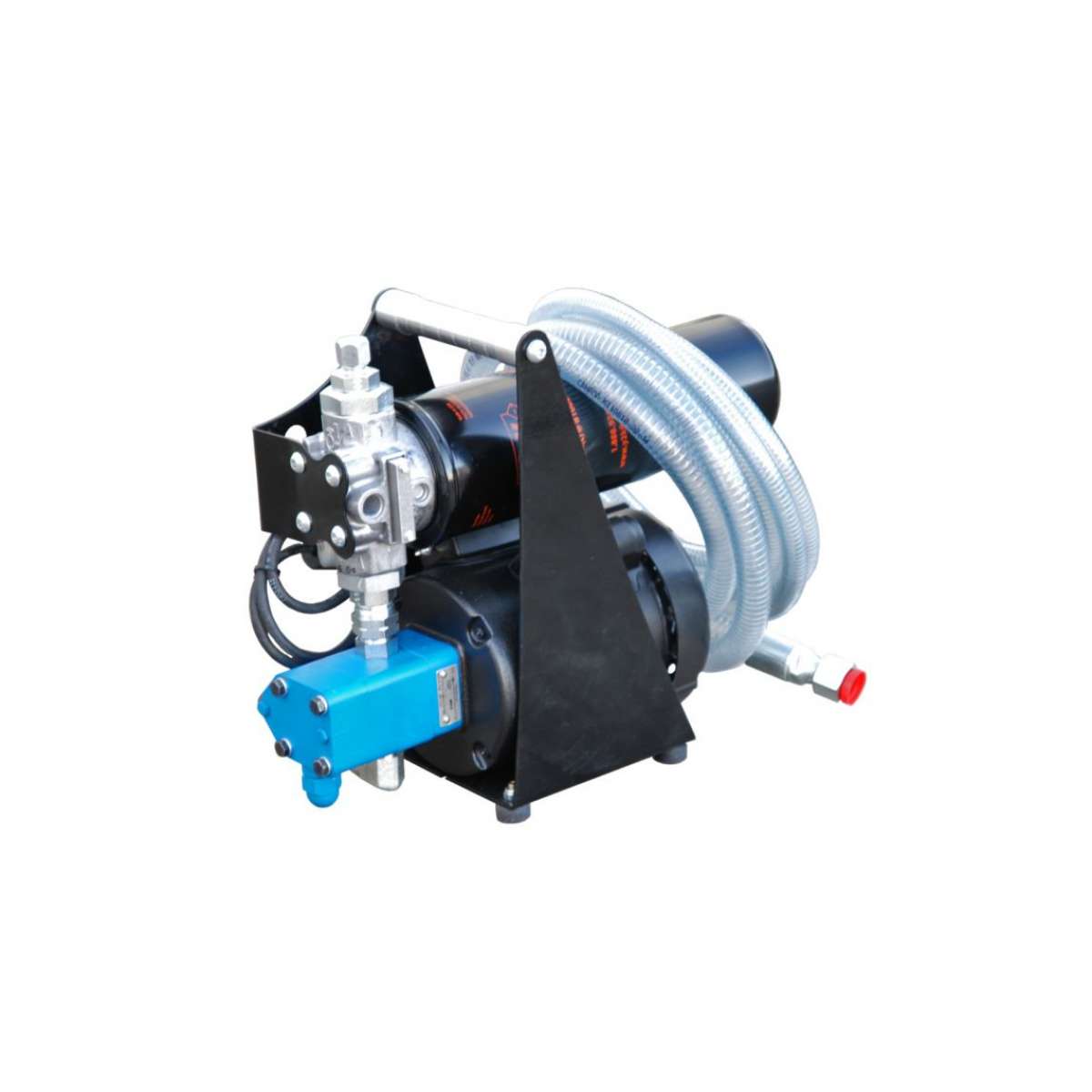

Compact Handheld Filter Pak Aluminum Frame Air Motor 1GPM

Brand: Lubrigard
Part Number:
LG-FPAD54M1SHSQNC




OVERVIEW

Perfect for situations with minimal storage space, the FP-D FilterPak combines style and convenience in a compact design that allows the operator to carry it just about anywhere. This powerhouse has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100°F within ambient temperature ranges of -15°F to 150°F. All Y2K products are 100% customizable upon request.

Typical Applications:

  • Filtering contaminated system
  • Flushing new or repaired systems
  • Pre-filtering new oil
  • Transferring oils
  • Topping off reservoirs
  • Dispensing new oil

SPECIFICATIONS

  • Compact Handheld Filter Pak Aluminum Frame Air Motor 1GPM
  • Single 50 PSI Bypass Head With Color Coded Differential pressure Indictor Single 4 Micron Beta 2000 Filter Element P1066
  • Air Operated Motor 1.5 HP
  • Filter, Regulator and Lubricator for the air motor
  • 7' Suction and Discharge Hoses With ISO B Quick Disconnects (3/4" and 1/2")

FEATURES

  • Frame: heavy duty, diamond plated aluminum frame
  • Paint: Multiple color options available
  • Motor: 1/2HP, 115vac, 60HZ
  • Filter Heads: Medium pressure, steel heads
  • Pump: Heavy duty steel gear pump. Available in 1, 2 and 5 GPM
  • Connections: Various quick connect options with steel dust plugs
  • Hoses: 2 ea, 7 ft. Clear PVC, steel reinforced hose or hydraulic hose
  • Power Switch: On/Off toggle switch
  • Filter Indicators: Slide bar indicator triggers at 50psid when elements need to be changed
  • Pump Relief: Opens at 150psi
  • Weight: Approx 50lbs (will vary depending on options)
