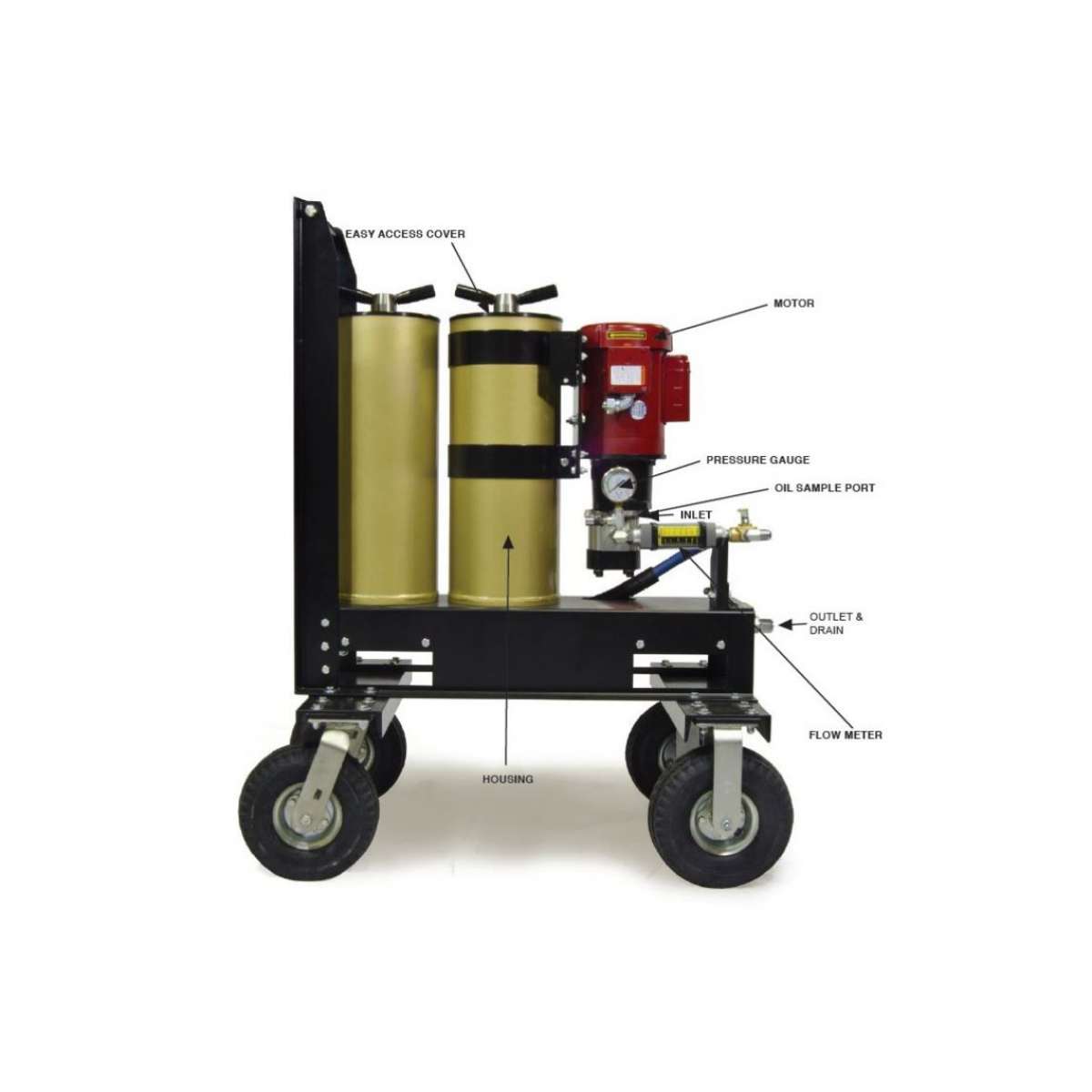

Gold F/C, 5GPM, 1HP, 110VAC, Magnetic


Lubrigard Gold F/C, 5GPM, 1HP, 110VAC, Magnetic

0 ratings | Submit a rating
$10,444.15  Cart is in US Dollar
Simple and Powerful.

Gold F/C, 5GPM, 1HP, 110VAC, Magnetic

Brand: Lubrigard
Part Number:
LG-GFC200-MFZZ




OVERVIEW

Custom filter cart

SPECIFICATIONS

  • GFC200- Custom
  • Four Heavy Duty Wheels Built on a Industrial Powder Coated Frame (Choose Colors When ordering)
  • Fork Pockets Built into the frame with Hose Guards
  • 1HP Motor, 1725RPM, 1Phase, TEFC 110VAC, Pre-Wired to Switch, Manual Overload Reset
  • 5 GPM (300 GPH) Heavy Duty Cast Iron Pump (Relief Set at 60 PSI)
  • Dual Aluminum Element housings (Holds up to 40 QTS of oil within each Cannister)
  • Dual Depth Elements Plumbed in Parrallel ( Dual GH134 = Hydraulic Element Standard, GG148 Gear Element Also Available sold separately) (Elements Capable of 1 Micron Filtering, Beta 1000 Rated at 3 Micron, Capable of achieving ISO 16/15/12 or better under normal contaminate ingressions in non-extreme environments, Each element can hold 1 Gallon of water or a combination of up to 5 Lbs of particulate or water, Free and Dissolved water removal down to 100 PPM, based on normal water ingression and levels of standard hydraulic tanks)
  • Magnetic Pre-Filter Aluminum Block w/removable and cleanable Stainless Steel Magnetic Rod Pump Outlet Pressure Guage Inlet and outlet Pressure Differential gauges (For reading Element life, Differential Pressure readings)
  • Magentic Motor Starter installed by the upright handle of the carts for easy and quick access 3/4" (-12) inlet and 1/2" Outlet (-8)
  • Ergonomic Handle
  • 40' Retractable Electric Cord Reel W/ Three Prong Plug
  • *Approx Unit Dimensions: 25" x 36" x 49" H
  • *Approx Weight may vary with additional options: 380 LBS w Elements, doesn't include additional Magetic Filter Weight and minor additional components
  • **1 Year Manufacturer's warranty on Parts and Labor only
