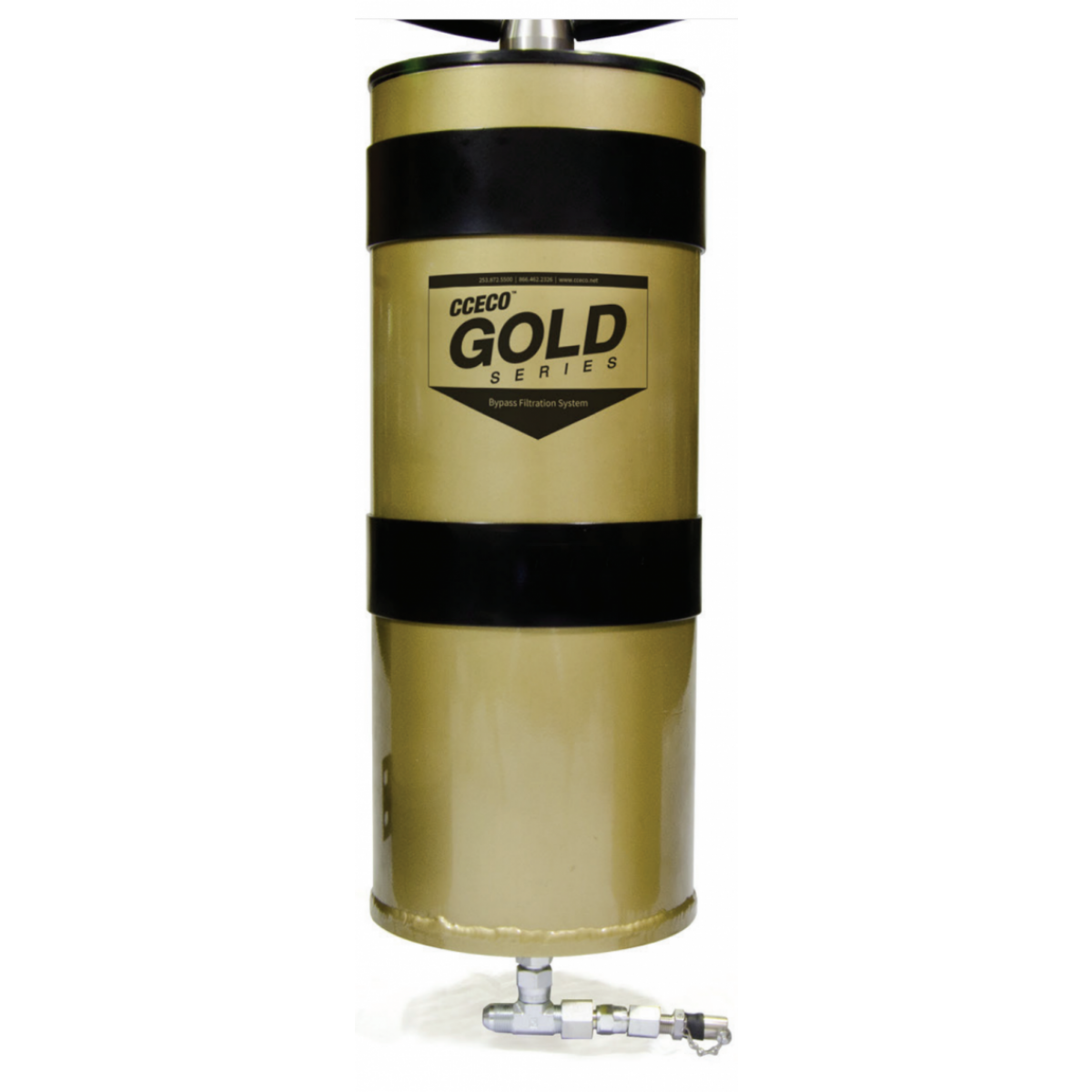

Gold Low Pressure Series GLP100


Lubrigard Gold Low Pressure Series GLP100

0 ratings | Submit a rating
$2,173.50  Cart is in US Dollar
Simple and Powerful.

O Rrings

Brand: Lubrigard
Part Number:
GLP100




OVERVIEW

Preventing contamination damage saves significant time, money and resources. Designed for low pressure systems, the GLP units remove large particles, fiber, sludge and water, but we don't stop there - the GLP's also "polish" the fluid by removing silt and fine particles down to 1 micron.

No tools are necessary for element changes with our T-bar style handles. The GLP series is built around heavy duty construction allowing for mounting on high vibration equipment. Push button sample ports are provided for easy oil sampling. By filtering down to 1 micron, These units maintain cleanliness levels several grades cleaner than brand new oil, which significantly extends the life of lubricated components and oil.

SPECIFICATIONS

  • OVERALL DIMENSIONS (W x L x H): 11" x 13" x 28"
  • NET WEIGHT (w/element) : 40 lbs (18.2 kgs)
  • FILTER HOUSINGS: 1
  • RESERVOIR CAPACITY: 60 gal* (228 liters)
  • DIRT HOLDING CAPACITY: 5 lbs
  • WATER HOLDING CAPACITY: 1 gallon
  • HOUSING OIL CAPACITY: 20 quarts
  • INLET DIAMETER: #8 JIC male
  • OUTLET DIAMETER: #8 JIC male
  • VISCOSITY CAPABILITIES: 10/460 cSt
  • OIL (ISO) CLEANLINESS: 16/15/12 or better

FEATURES

  • Filters down to 1 micron, several grades cleaner than new oil
  • Moisture removal down to 100ppm
  • Lower ISO codes
  • Dramatically extends oil life and rebuild cycles
  • Media flow path 30-50 times longer than full flow, in-line filter elements
  • Extends total base number (TBN) life
  • Sample port for easily drawn oil samples
  • Depth-style filtration for maximum dirt holding capacity and efficiency
  • Reduces Contamination Failure in Hydraulic Systems, Transmission Fluids, Mobile Hydraulic Systems and Stationary Hydraulic Systems
