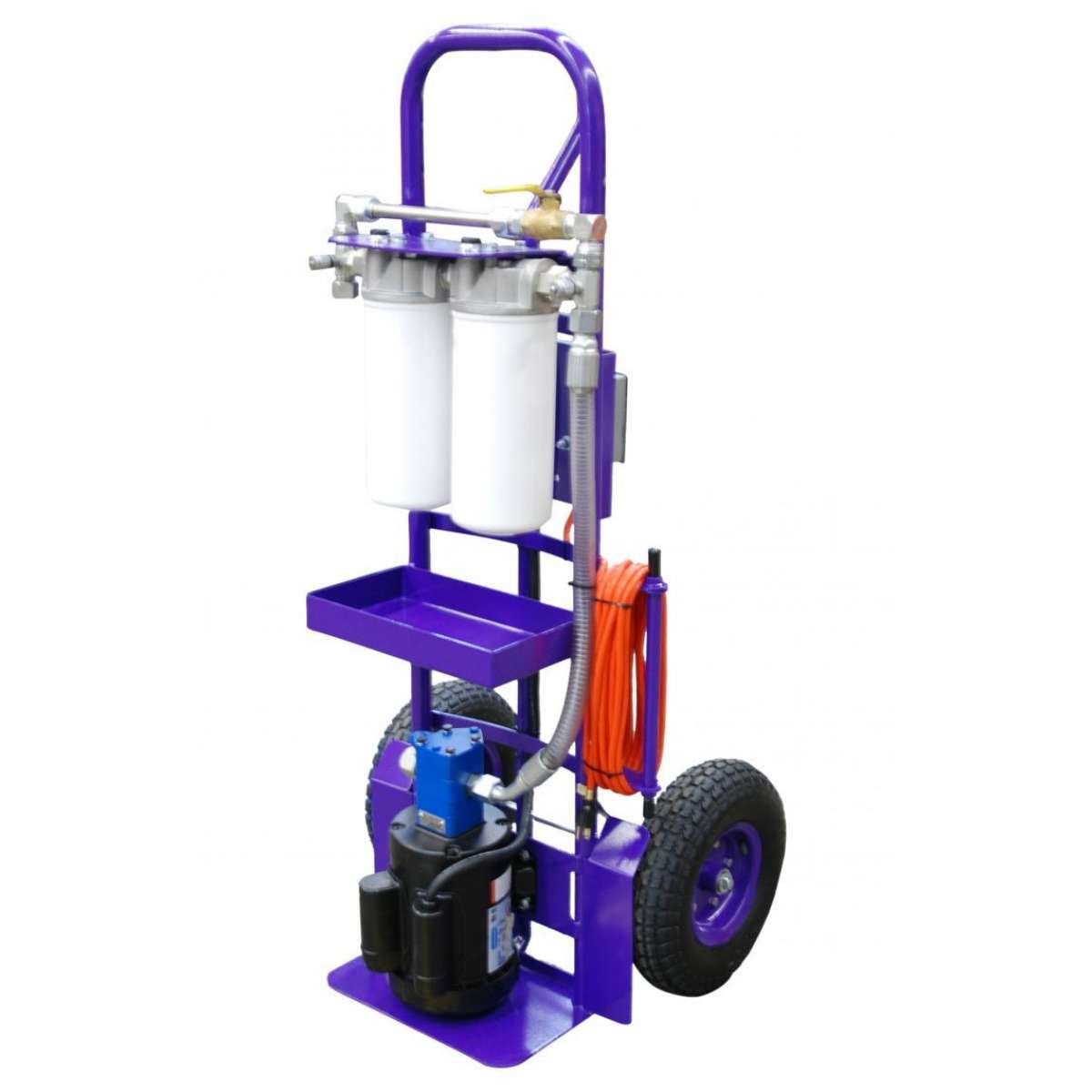

M Series Filtercart for Gear Oil 1HP 2GPM


Lubrigard M Series Filtercart for Gear Oil 1HP 2GPM

0 ratings | Submit a rating
$4,717.80  Cart is in US Dollar
Simple and Powerful.

M Series FilterCart - Simple and Powerful.

Brand: Lubrigard
Part Number:
LG-HTM1062SH1SQ125C4-BOS




OVERVIEW

The HT-M Series filter cart is a great choice for "off-line" filtration in a wide variety of settings. Extremely mobile and light weight, this filter cart has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All Y2K products are 100% customizable upon request.

Typical Applications:

  • Filtering contaminated system
  • Flushing new or repaired systems
  • Pre-filtering new oil
  • Transferring oils
  • Topping off reservoirs
  • Collecting oil samples for analysis
  • Dispensing new oil

SPECIFICATIONS

  • 2 Wheeled Hand Truck Filter Cart
  • Flat/Maintenance Free Tires
  • Dual 50 PSI Bypass Filter Heads W/ Pop-up Differential Pressure Indicators
  • 10 Micron Beta 1000 First Stage P1070
  • 6 Micron Beta 1000 Second Stage P1069
  • 2" Lipped Drip Pan Under The Elements
  • 1HP Motor TEFC 110VAC
  • 2 GPM Heavy Duty Cast Iron Gear Pump W/ 150 PSI Relief Valve
  • 7' Suction and Discharge Hoses With ISO B Quick Disconnects (1" & 3/4", hydraulic Jumper)
  • 25' Electric Cord
  • Textured Black Powder Coat: Oil Resistive Grip For Safety
  • Manual Oil Bypass
  • Oil Sample Ports Up/Down Stream
  • Suction Strainer on the inlet of the pump

FEATURES

  • Frame: Carbon steel with drip pan
  • Paint: Industrial powder coat; various colors available
  • Motor: 1HP, 115vac, 60Hz or Pneumatic Air
  • Filter Heads: Low pressure, steel heads
  • Pump: Aluminum gear pump. Available in 2, 5 and 10 GPM
  • Connections: ISO A, ISO B, Flush Face and Camlock options available
  • Hoses: 7ft. Clear PVC, steel reinforced hose or hydraulic hose
  • Power Switch: Sealed on/off power switch
  • Filter Indicators: Slide bar indicator triggers at 50psid when elements need to be changed
  • Pump Relief: Opens at 150psi
