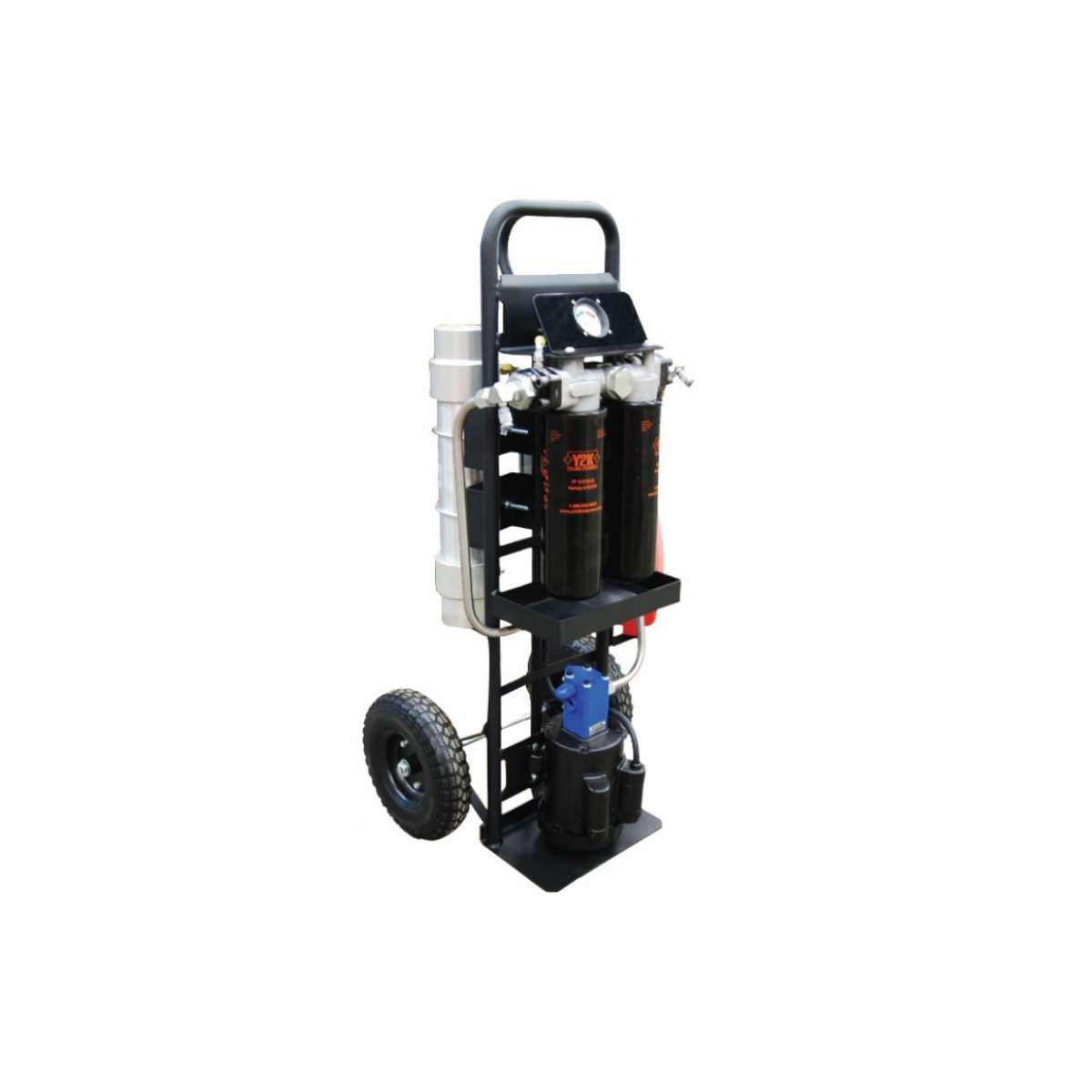

Lubrigard Portable Membrane Dehydration System

When you need to remove large amounts of water from your reservoirs, but the lack of portability and electrical requirements of a conventional VAC Dehydration system hinders your efforts, we have got you covered. Built with your needs in mind, we designed a unit that is portable and easy to get around while 110 Volts makes it easy to find power. Utilizing a standard filter cart frame, we made our unit easy to transport and move through doors, catwalks and most hard to reach areas a conventional dehydrator cannot fit. The portable vacuum dehydrator has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100ºF within ambient temperature ranges of -15ºF to 180ºF.

Typical Industries:

• Power Generation
• Mining
• Pulp and Paper
• Steel
• Automotive Manufacturing

Typical Applications:

• Hydraulic Reservoirs
• Pulp and Paper Lube Systems and Gearboxes
• Cooling Tower Gearboxes
• And Many Other Applications

Removes:

• 100% Free Water
• 100% Emulsified Water
• Dissolved water to < 25 ppm or less
• Particulates to < 3 um

• Single Parallel Filter Head With 50 PSI Bypass Dual 4 Micron Beta 2000 Elements P1066 7' Scution and Discharge Hoses With ISO B Quick Disconnects 40' Retractable electric Cord Reel
• Drip Pan Under Elements 2"
• Flat Free Tires
• Blaze Orange Powder Coat
• Push Button Sample Ports Up/Down Strream of the elements
• *Shop Air is also required to run the Membrane Unit

• Frame: Carbon steel with drip pan
• Paint: Industrial powder coat; various colors available
• Motor: 1HP, 115vac, 60Hz or Pneumatic Air
• Filter Heads: Dual stage, medium pressure, steel heads
• Pump: Heavy duty, steel gear pump. Available in 2 and 5 GPM
• Connections: Various quick connect options available
• Hoses: 2 ea., 7ft Clear PVC, steel reinforced suction and discharge hoses
• Power Switch: Sealed on/off power switch
• Slide bar indicators trigger at 50 psi when elements need to be changed
• Pump Relief: Opens at 150 PSI
• Weight: Approx 170lbs (will vary depending on options)
• 23"L x 23"W x 52"H
