Drum Topper, 1/2HP, 10GPM SPCL


Lubrigard Drum Topper, 1/2HP, 10GPM SPCL

0 ratings | Submit a rating
Price: Call for price 1-800-268-2131  Cart is in US Dollar
Compact and Portable

D Series Drum Topper - Compact and Portable.

Brand: Lubrigard
Part Number:
LG-DTD574C10WH1SQ125C1-BO




OVERVIEW

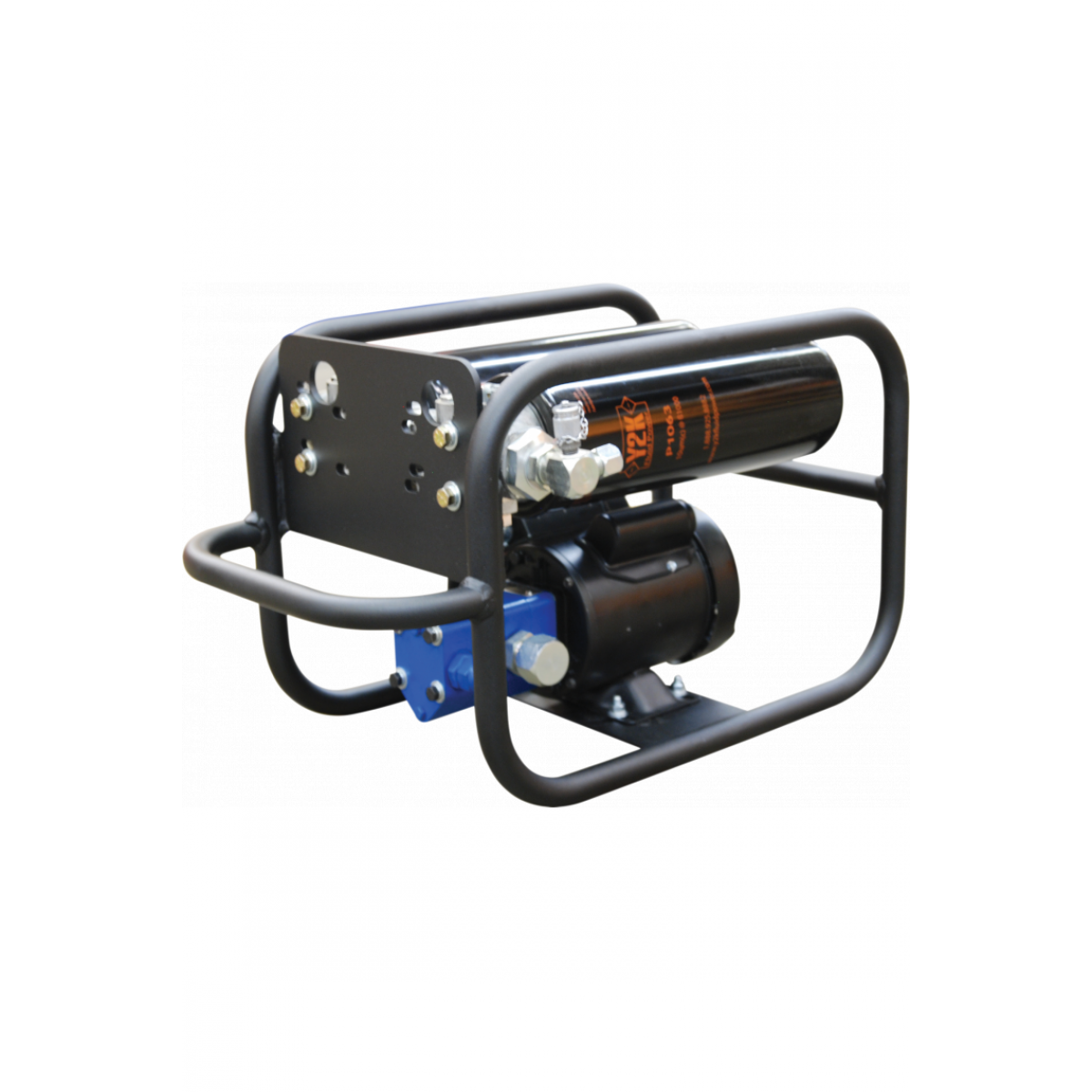

Compact and portable, the DTD Drum Topper is designed to fit perfectly on top of a 55-gallon drum. When portability and convenience is of the utmost importance, the Drum Topper has your back. With the ability to be used horizontally or vertically, our drum topper is the most versatile in the industry. It has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100ºF within ambient temperature ranges of -15ºF to 150ºF. All Y2K products are 100% customizable upon request.

SPECIFICATIONS

  • Drum Topper Aluminum Powder Coated Frame
  • Dual 50 PSI Bypass Filter Heads W/ Color Coded Differential Pressure Indicators
  • 7 Micron Beta 2000 First Stage P1065
  • 4 Micron Beta 2000 Second Stage P1066
  • 1/2HP Motor TEFC 110VAC
  • 10 GPM Heavy Duty Cast Iron Gear Pump W/ 150 PSI Relief Valve
  • 7' Suction and Discharge Hoses With ISO B Quick Disconnects (1" & 3/4" Hydraulic High pressure Hose)
  • 4' Electric Cord
  • Powder Coated: Orange
  • Manual Bypass
  • Oil Sample Ports Up/Down Stream
