Drum Topper,1GPM, 1/2HP SPCL

Lubrigard Drum Topper,1GPM, 1/2HP SPCL

0 ratings | Submit a rating
Price: Call for price 1-800-268-2131  Cart is in US Dollar
Compact and Portable

D Series Drum Topper - Compact and Portable.

Brand: Lubrigard
Part Number:

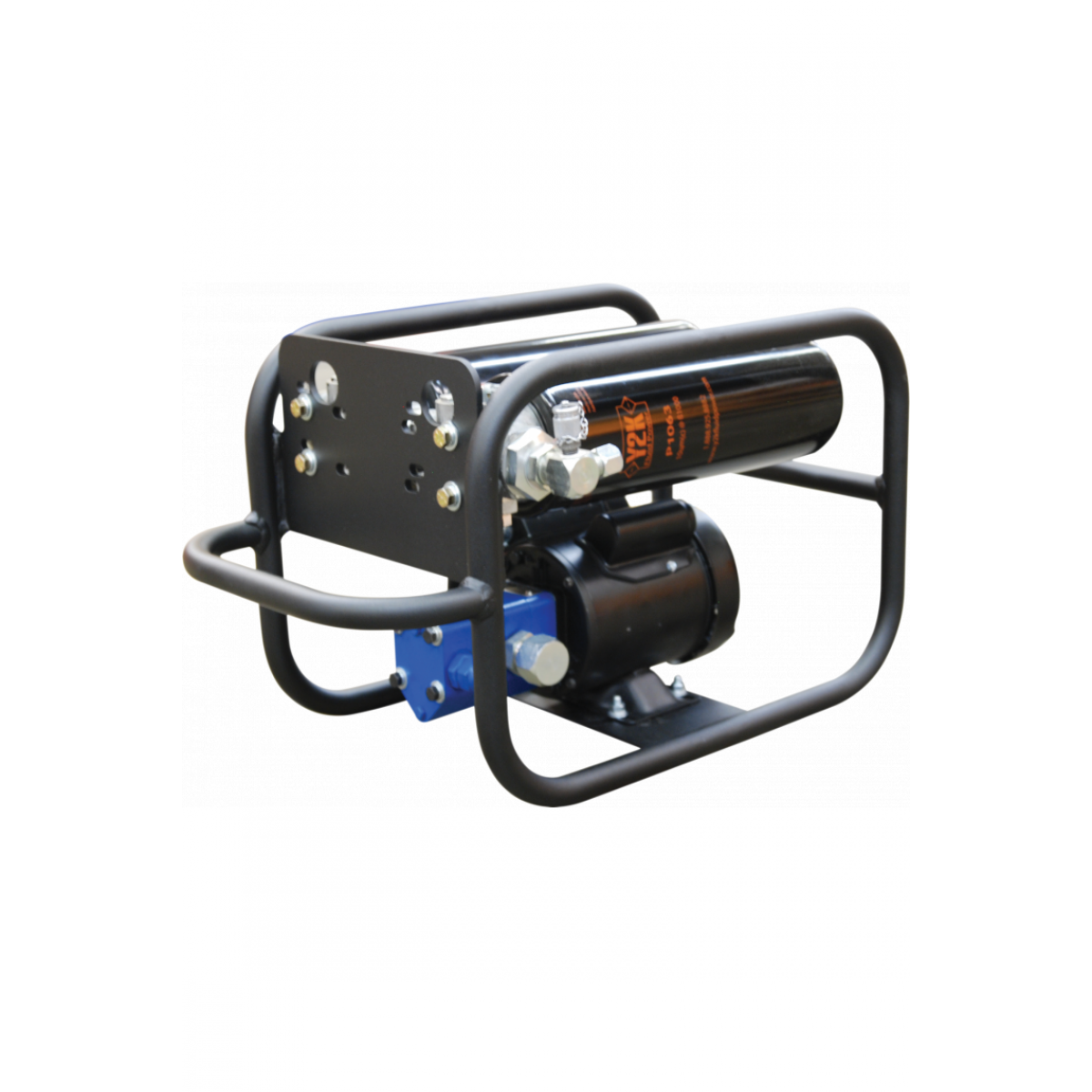

Compact and portable, the DTD Drum Topper is designed to fit perfectly on top of a 55-gallon drum. When portability and convenience is of the utmost importance, the Drum Topper has your back. With the ability to be used horizontally or vertically, our drum topper is the most versatile in the industry. It has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100ºF within ambient temperature ranges of -15ºF to 150ºF. All Y2K products are 100% customizable upon request.


  • Aluminum Drum Topper Frame
  • Dual D-Series 50 PSI Bypass Filter Heads W/ Slide Type Color Coded Differential
  • Pressure Indicators
  • Water Removal First Stage P1048WR
  • 4 Micron Beta 2000 Element Second Stage P1066
  • 1/2HP Electric Motor, TEFC, 1P, 110VAC
  • 1 GPM Heavy Duty Cast Iron Gear Pump W/ 150 PSI Relief
  • 7' Suction and Discharge Hoses With ISO B Quick Disconnects (1" and 3/4")
  • *Recommend one of our breather kits, Hose wands or Matching Quick Disconnects to connect this system
  • 25' Electric Cord, Toggle Switch
  • Red Powder Coat
  • Manual Bypass
  • Oil Sample Ports Up/Down Stream of the elements NOTE: ITEM MAY NOT BE EXACTLY AS SHOWN
