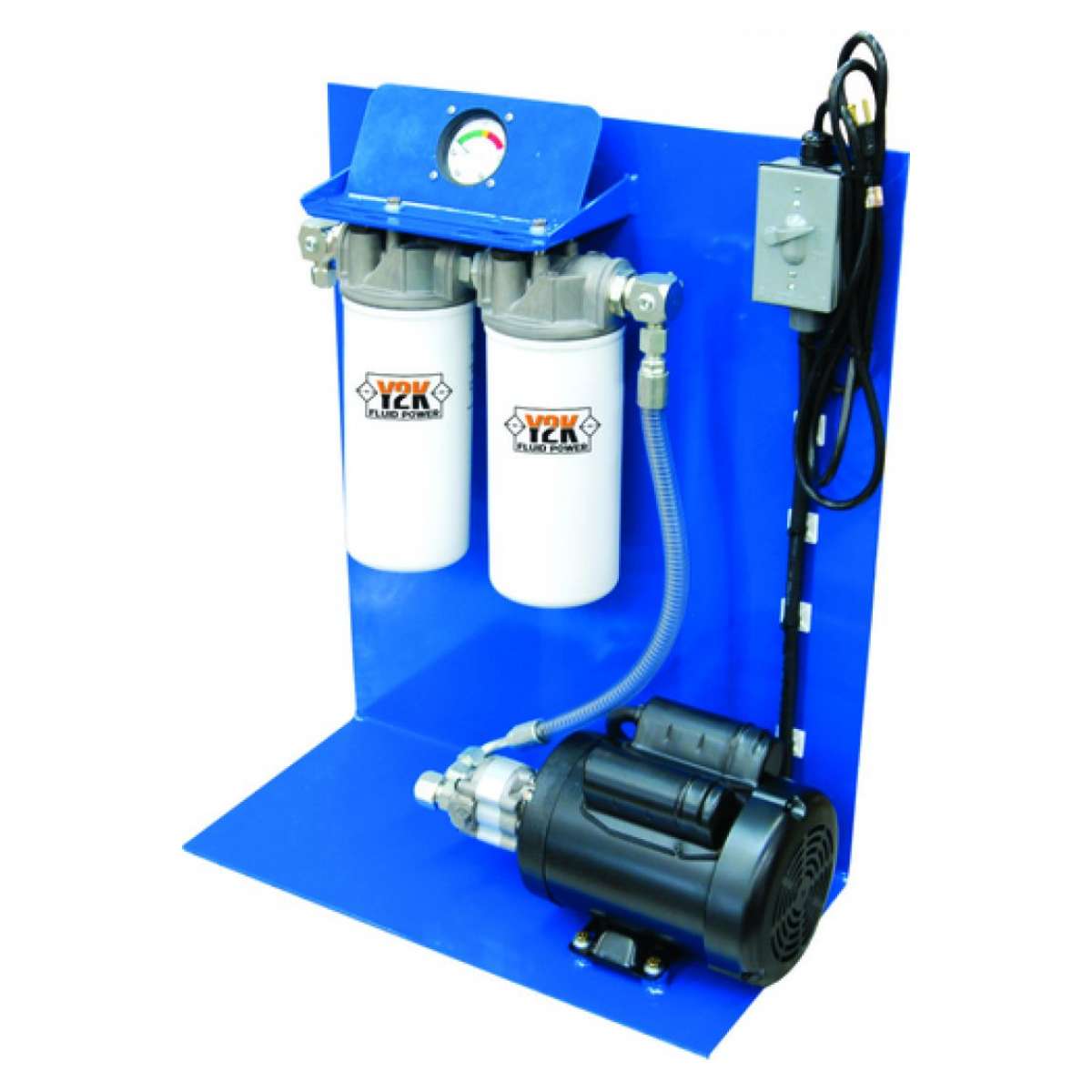

M Series Panel Unit


Lubrigard M Series Panel Unit

0 ratings | Submit a rating
$3,708.87  Cart is in US Dollar
Compact and Portable

M Series FilterCart - Compact and Portable.

Brand: Lubrigard
Part Number:
PUM635NHNQNC1-BO




OVERVIEW

When you need to install a permanent, continuous duty solution for your offline filtration, the PU-D Panel Unit is the perfect solution. Available in a variety of sizes, it will suit any space requirement you may have. These filtration systems have all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All Y2K products are 100% customizable upon request.

Typical Applications:

  • Filtering contaminated system
  • Collecting oil samples for analysis
  • Dispensing new oil
  • Permanent Installations

SPECIFICATIONS

  • M-Series Filter heads, 50 PSI Bypass with pop up style indicators
  • 5" x 10" M Series 6 Micron filter element first stage P1069
  • 5" x 10" M Series 3 Micron filter element second stage P1068
  • 1 HP motor TEFC, 1725 RPM, 115VAC, 60HZ
  • 5 GPM Aluminum Gear Pump
  • No Hoses
  • No Quick Disconnects
  • No Cord (Hardwired)
  • Powder Coated Blaze Orange
  • Lubrigard Manual and Serial Number
  • Filter element bypass for non-filtering transfer applications
  • Oil sample ports up and down stream of the filter elements
  • NOTE: ITEM MAY NOT BE EXACTLY AS SHOWN

FEATURES

  • Frame: Carbon steel with drip tray
  • Paint: Multiple color options available
  • Motor: 1HP, 115vac, 60Hz or Pneumatic
  • Filter Heads: Medium pressure, cast aluminum heads
  • Pump: Heavy duty, cast steel gear pump. Available in 1, 2, 5 and 10 GPM
  • Filter Indicators: Slide bar indicator triggers at 50psid when elements need to be changed
  • Pump Relief: Opens at 150psi
  • Weight: Approx 125lbs (will vary depending on options)
  • Dimensions: Approx 24"L x 12"W x 29"H
