Panel Unit, 1HP, 5GPM SPCL

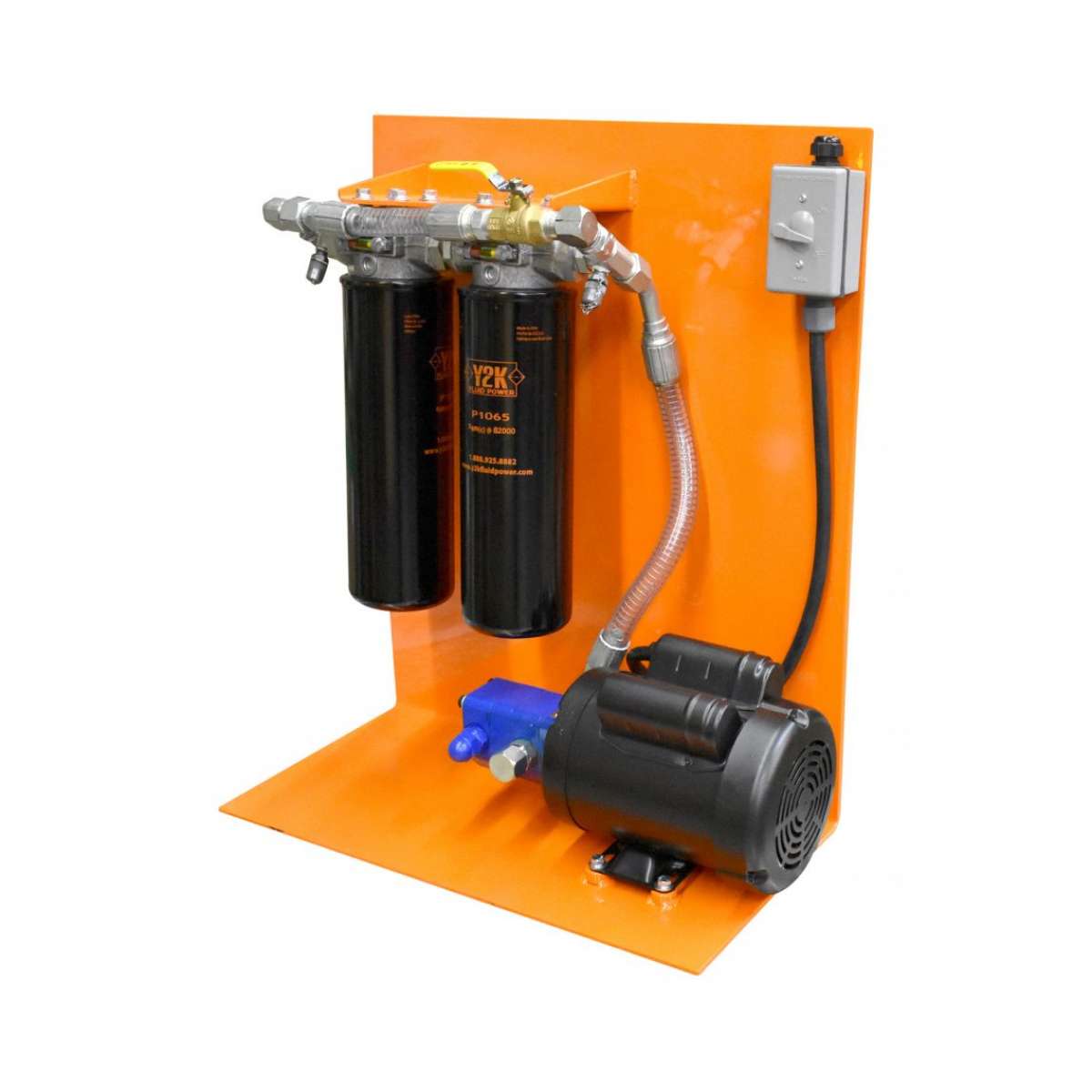

Lubrigard Panel Unit, 1HP, 5GPM SPCL

0 ratings | Submit a rating
Price: Call for price 1-800-268-2131  Cart is in US Dollar
Compact and Portable

Heavy Duty Lubrigard Panel Unit

Brand: Lubrigard
Part Number:
LG-PUD51075NHNQNC1-BO




OVERVIEW

When you need to install a permanent, continuous duty solution for your offline filtration, the PU-D Panel Unit is the perfect solution. Available in a variety of sizes, it will suit any space requirement you may have. These filtration systems have all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All Y2K products are 100% customizable upon request.

Typical Applications:

  • Filtering contaminated system
  • Collecting oil samples for analysis
  • Dispensing new oil
  • Permanent Installations

SPECIFICATIONS

  • Panel Unit, Private Label Lubrigard
  • Dual 50 PSI Bypass Filter Heads W/ Slide Type Color Coded Differential Pressure Indicators
  • 10 Micron Beta 2000 First Stage P1063
  • 7 Micron Beta 2000 Second Stage P1065
  • 2" Lipped Drip Pan Under The Elements
  • 1HP Motor TEFC 110VAC
  • Sealed On/Off Switch (Wired Direct)
  • 5 GPM Heavy Duty Cast Iron Gear Pump W/ 150 PSI Relief Valve
  • No Hoses, cord or Quick Disconnects
  • Industrial Orange Powder Coat
  • Manual Bypass
  • Oil Sample Ports Up/ Down Stream

FEATURES

  • Frame: Carbon steel with drip tray
  • Paint: Multiple color options available
  • Motor: 1HP, 115vac, 60Hz or Pneumatic
  • Filter Heads: Medium pressure, cast aluminum heads
  • Pump: Heavy duty, cast steel gear pump. Available in 1, 2, 5 and 10 GPM
  • Filter Indicators: Slide bar indicator triggers at 50psid when elements need to be changed
  • Pump Relief: Opens at 150psi
  • Weight: Approx 125lbs (will vary depending on options)
  • Dimensions: Approx 24"L x 12"W x 29"H
