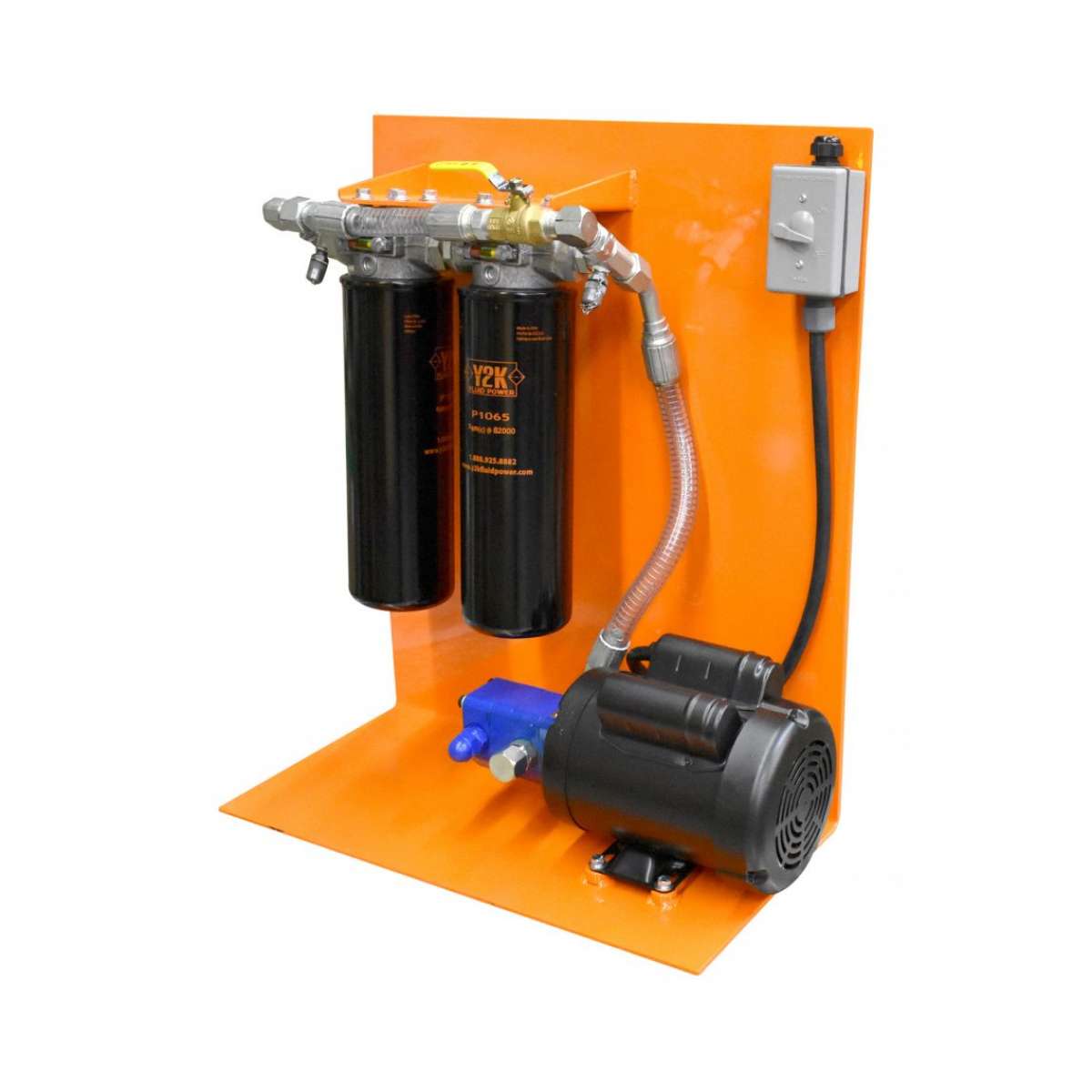

Panel Unit Air op 2GPM SPCL

Lubrigard Panel Unit Air op 2GPM SPCL

0 ratings | Submit a rating
Price: Call for price 1-800-268-2131  Cart is in US Dollar
Compact and Portable

Panel Unit, 5GPM, 1HP Push Buttom SMPL

Brand: Lubrigard
Part Number:


When you need to install a permanent, continuous duty solution for your offline filtration, the PU-D Panel Unit is the perfect solution. Available in a variety of sizes, it will suit any space requirement you may have. These filtration systems have all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All Y2K products are 100% customizable upon request.

Typical Applications:

  • Filtering contaminated system
  • Collecting oil samples for analysis
  • Dispensing new oil
  • Permanent Installations


  • Lubrigard Heavy Duty Panel Unit
  • Dual 50 PSI Bypass Filter Heads W/ Color Coded Differential Pressure Indicators
  • First Stage Water Removal P1048WR
  • Second Stage P1064 25 Micron Beta 2000
  • 1.5 HP Air Operated Motor W/ Filter, Regulator and Lubricator (Lubricator has minimal amount of oil must be filled prior to use)
  • 2 GPM Heavy Duty Cast Iron Gear Pump W/ 150 PSI Relief Valve
  • 3/4" Hydraulic Jumper (No inlet or outlet hoses, 1" Inlet port MJIC and 3/4" Outlet port
  • MJIC
  • Oil Sample Ports Up/Down Stream
  • Manual Bypass
  • Powder Coated: Orange
