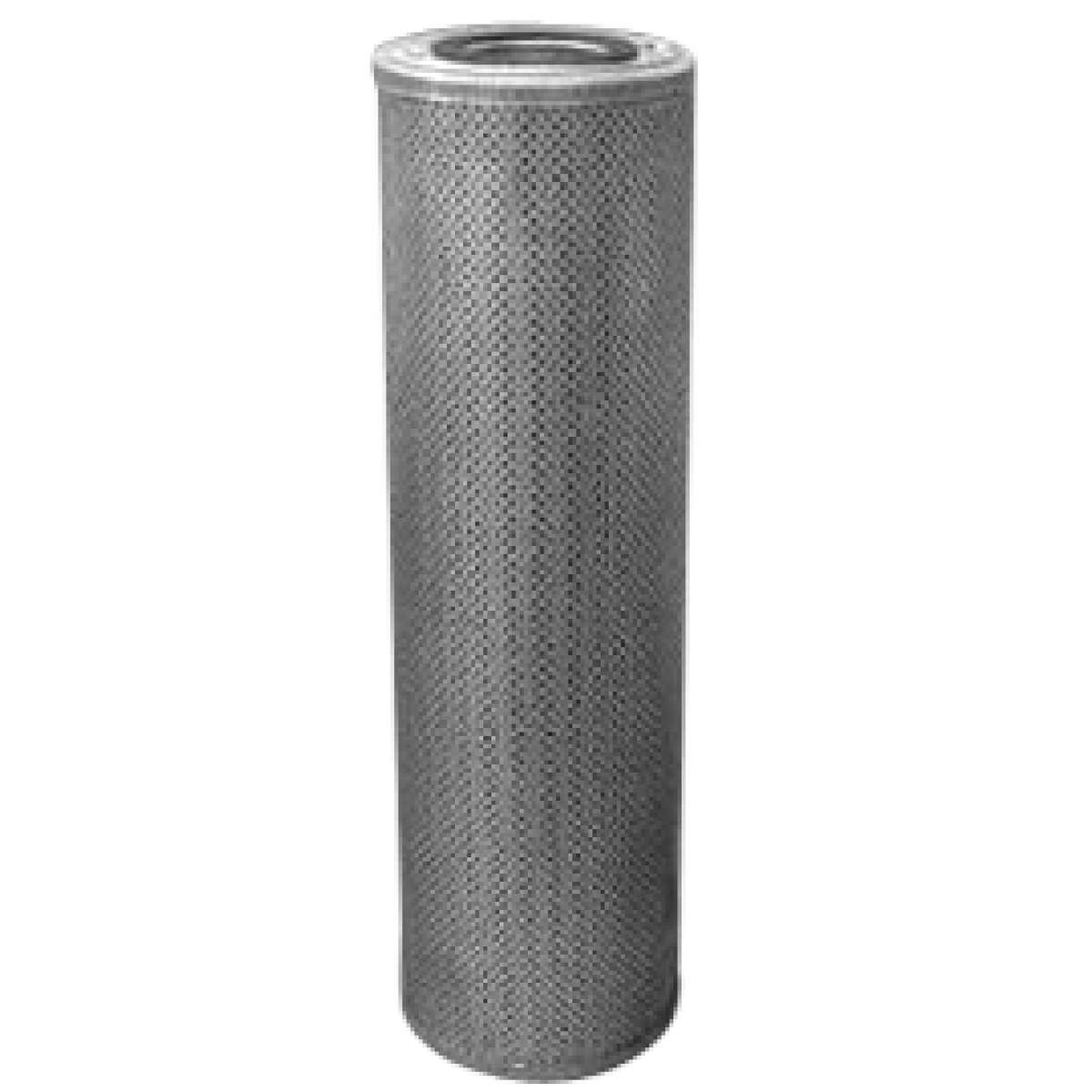

Full-flow Micro-fibreglass Filter Element (6 micron)


Lubrigard Full-flow Micro-fibreglass Filter Element (6 micron)

0 ratings | Submit a rating
$382.08  Cart is in US Dollar
AMS System Micro-fiberglass Filters

Elements designed for AMS 636, VAC, HVAC and other Filtration Systems utilizing Full Flow Filtration

Brand: Lubrigard
Part Number:
P63606




SPECIFICATIONS

  • Micron Rating: 6 micron
  • Beta Ratio: Beta 1000
  • Length: 36" ( 91.50 cm)
  • Outside Diameter: 6" ( 15.25 cm)
  • Maximum Differential Pressure: 150 PSI
  • Maximum Flow Rate: 150 GPM ( 568 liter/minute)
  • Maximum Viscosity that can be filtered: ISO 1000
  • Fluids that can be filtered: Oil, Synthetic Lubes, Water based fluid

FEATURES

  • Epoxy-Coated Steel Support Mesh (Upstream and Downstream)
  • Provides excellent pleat support and spacing
  • Protects against media damage during handling and installation
  • Excellent compatibility
  • Allows for maximum effective media area
  • Media Support Layers (Upstream and Downstream)
  • Optimizes media support
  • Protects media during pressure surges
  • Micro-glass Media - AMS synthetic filter media has smooth, rounded fibers for low resistance to fluid flow. This media is ideal for filtering synthetic fluids, water glycols, water/oil emulsions, HWCF and petroleum-based fluids.
  • Synthetic filter media is specially developed for fluid filtration
  • High-efficiency media grades with performance to ß<4(c)=1000 (per ISO 16889)
  • Exceptionally low flow resistance
  • Consistent performance throughout the life of the filter
  • Excellent compatibility
