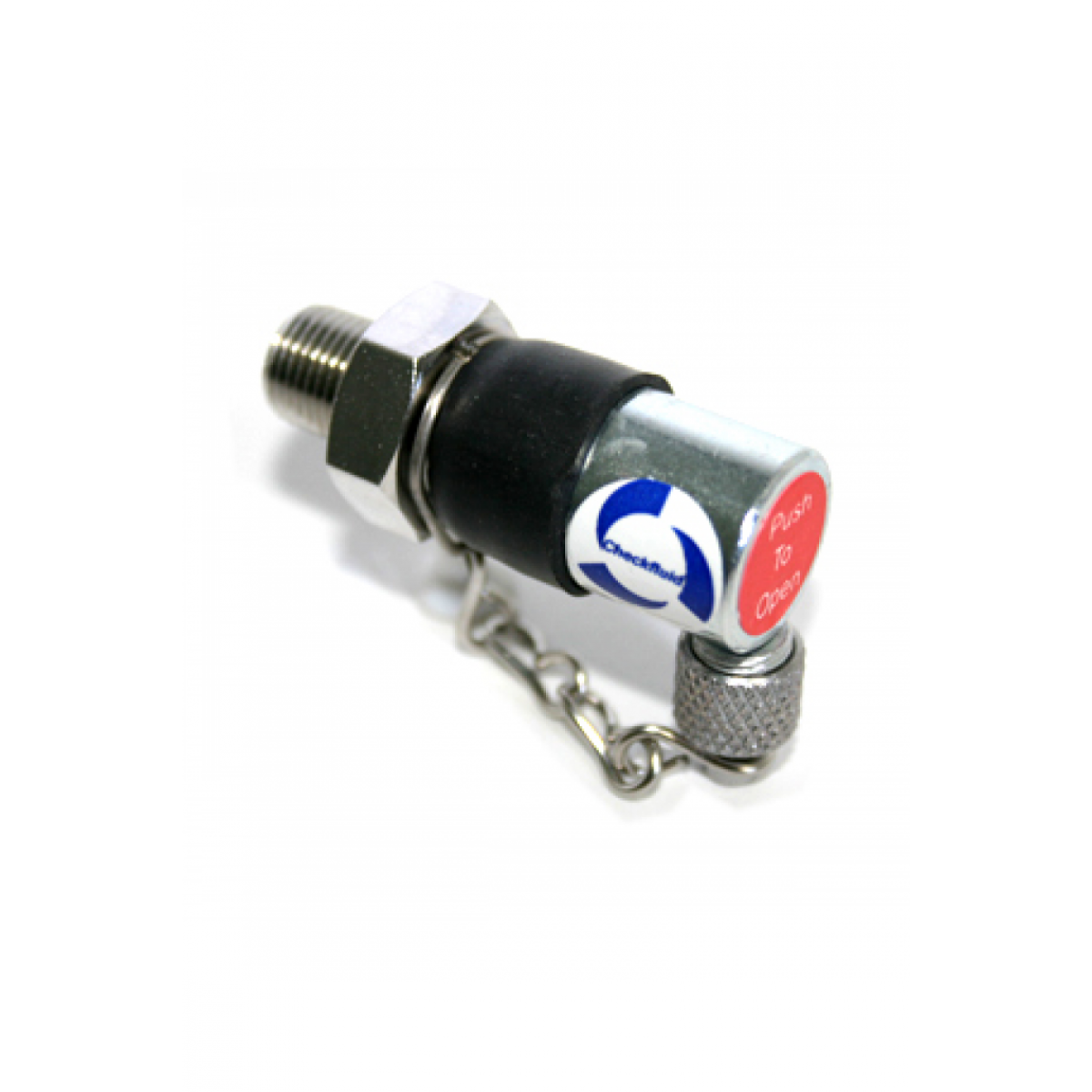

KP series push button sampling valve, 1/8" NPT

CheckFluid KP series push button sampling valve, 1/8 inch NPT

0 ratings | Submit a rating
$49.92  Cart is in US Dollar
Rapid Oil Sample Taking

The KP Series Sampling valve allows for sample taking at the "push of a button".

Brand: CheckFluid
Part Number:


The KP Sample valves are suitable for all applications, and there simplicity of use make them popular. Take an oil sample simply by pushing a button.


  • Body Component: Carbon Steel
  • Button/Spout/Cap: Brass
  • Seals: Viton
  • Spring: Carbon Steel
  • Thread Size: 1/8" NPT
  • Sampling Pressure Range: 5 psi to 750 psi
  • Max operating pressure: 6,000 psi
  • Max burst pressure: 24,000 psi
  • Viton seal temperature: -26C to 204C (-15F to 400F)


  • 360 degree rotatable spout
  • For use on Engines, Hydraulics, Transmissions, Turbines, Compressors
  • Sample while the equipment is running (up to 750psi)
  • Take hot, circulating, live oil samples directly from pressurized ports to give more representative samples.
  • Reduce the time needed to take samples
  • Avoid opening system and exposing to external contamination
  • Less than 1ml (0.04 fl oz) of deadzone volume to purge
  • Avoid the cost of sample retakes and faulty trend data
  • Avoid the cost of replacement probes or cross contaminated samples
  • Avoid the inconsistency of drain and vacuum pump sampling
