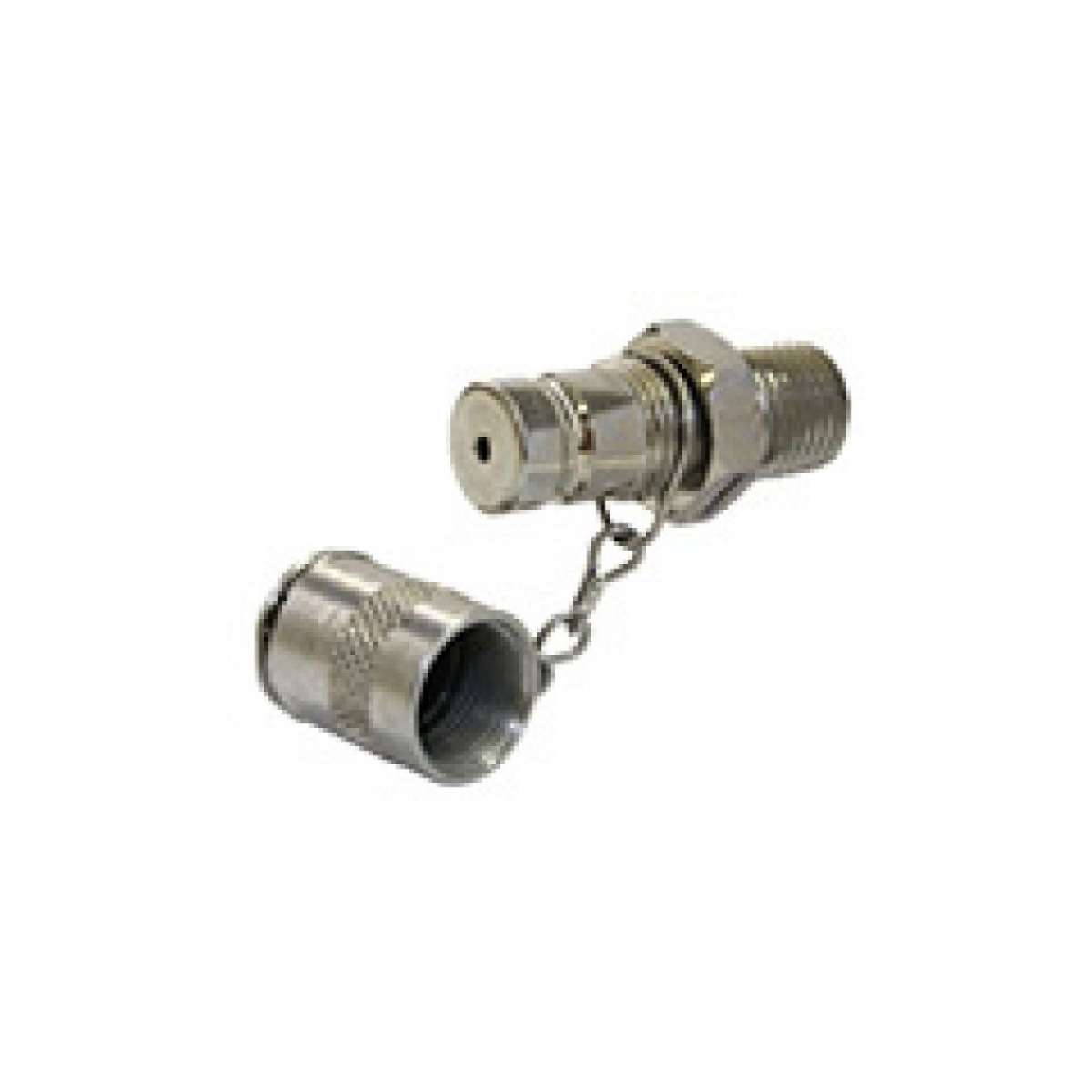

KST series probe, 3/8" NPTF, Steel


WearCheck KST series probe, 3/8" NPTF, Steel

0 ratings | Submit a rating
$34.10  Cart is in US Dollar
Rapid Oil Sample Taking

The KST Series Sampling valve works hand-in-hand with the probalizer-style vacuum sample pump.

Brand: WearCheck
Part Number:
KST6NC
Availability: Please Contact




OVERVIEW

The KST Sample valves are suitable for mobile and marine applications, and their unique design makes them suitable for use with the probalizer-style vacuum sampling pump for taking rapid and accurate oil analysis samples.

SPECIFICATIONS

  • Thread Size: 3/8" NPT
  • Sampling Pressure Range: 5 psi to 750 psi
  • Max operating pressure: 6,000 psi
  • Max burst pressure: 24,000 psi
  • Viton seal temperature: -26C to 204C (-15F to 400F)

FEATURES

  • General off-highway, mobile and marine use.
  • For use on Engines, Hydraulics, Transmissions, Turbines, Compressors
  • Sample while the equipment is running
  • Take hot circulating, live oil samples directly from pressurized ports to give more representative samples.
  • Reduce the time needed to take samples
  • Avoid opening system and exposing to external contamination
  • Less than 1ml (0.04 fl oz) of deadzone volume to purge
  • Avoid the cost of sample retakes and faulty trend data
  • Variety of probe options for hand sampling and higher pressure dynamic sampling.
  • Avoid the mess and inaccuracy of drain sampling and vacuum pump sampling.
