Bulk Oil Storage System - 4 x 65 Gallon Tanks

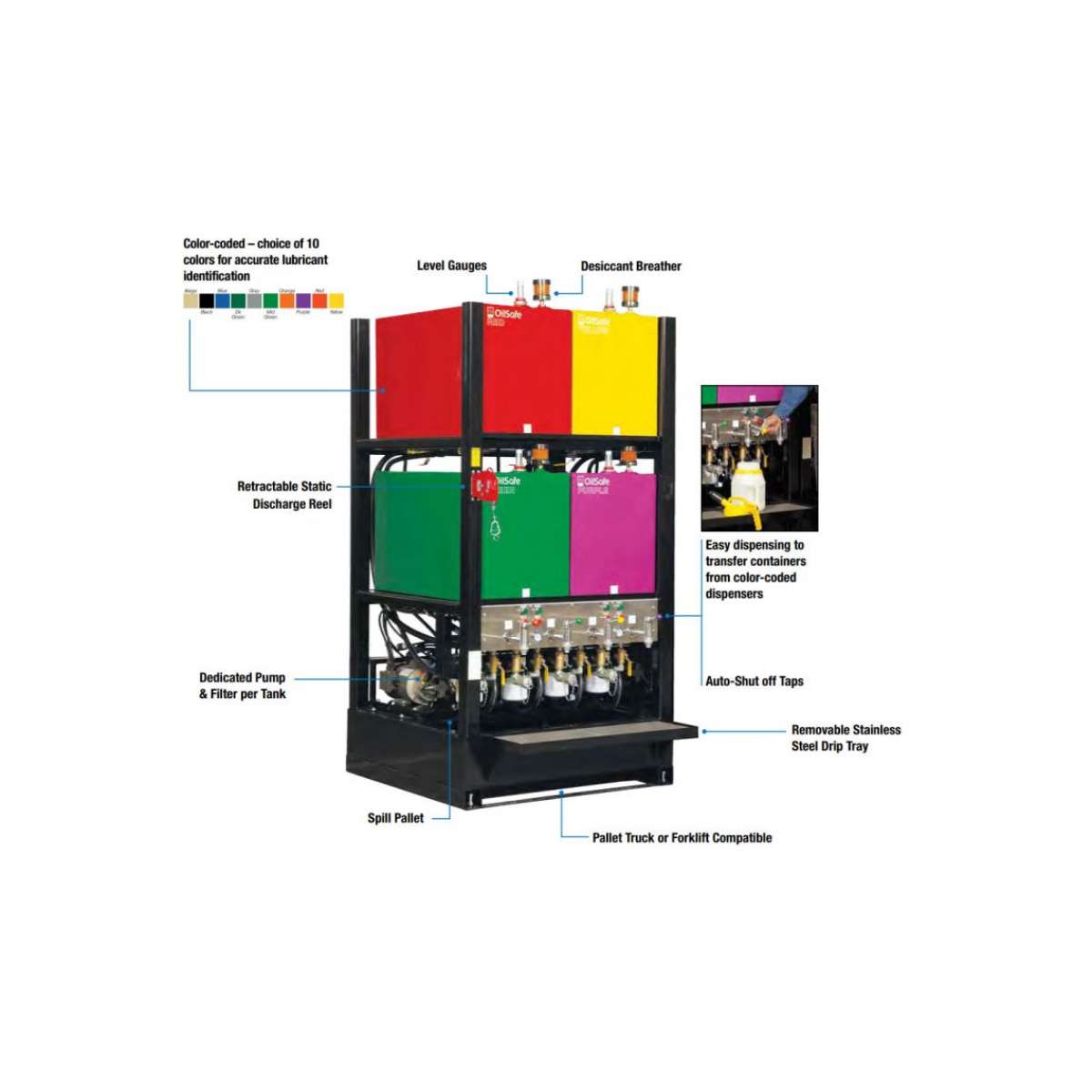

Fluid Defense Bulk Oil Storage System - 4 x 65 Gallon Tanks

0 ratings | Submit a rating
$38,859.28  Cart is in US Dollar
The better way to handle oils

The Advanced Bulk Oil Storage System is the best practice solution for storage and dispensing of lubricating oils and glycol based coolants in industrial facilities.

Part Number:
1A0400
Availability: Please Contact




OVERVIEW

An instant Lube Room, this premium configuration incorporates best of class features.

SPECIFICATIONS

  • Number of containers: 4 x 65 Gallon Tanks
  • All framework & pans to be supplied in black as per Oil Safe standard
  • Fluid Compatibility - suitable for lubricating oils & glycol base coolants. Not for use with fuels or solvents, or fluids with a flashpoint below 150F.
  • MSDS Sheets for each fluid to be stored in the system that is not a machinery lubricating oil or glycol based coolant must be supplied prior to order placement, with prices subject to change with that list.
  • System will be supplied with spin-on filter micron ratings as directed by Client in the attached Product Data Sheet or beta 2000/25um as standard if no instructions provided by Client
  • Standard High Viscosity Pumps are installed and can accommodate maximum oil viscosity of ISO 680 or 3000SUS
  • Alternative motor electrical supply voltage/frequencies for specific markets are also available upon request and can be specified in the attached Product Data Sheet.
  • All tanks are Color Coated Containers with Level Gauges, and tank fittings. All Containers are TGIC Polyester Powder Coated, and constructed of aluminum.
  • 3-Way Product Diverter Valve Assemblies to allow Product to be pumped through the Filters into the Containers, and then pulled back out of the Containers, through the Filters with the Transfer Units. Product can also be Pulled from the Containers, Cycled through the Filters and sent back into the Containers.
  • Client to supply and install electrical outlets (on independent circuits if more than one pump could be running at any given time) as energy source for main power supply:
  • System includes one 110 Volt/14A, 1.0HP TEFC electric motors for positive displacement gear pumps (3 GPM) per tank
  • Individual Filter Assemblies consisting of Filter Heads, and Outlet Fittings. Filter Assemblies are to be supplied with the 14.2" Filter Elements and Electronic Differential Pressure Indicator (DPI).
  • Desiccant Air Breathers (One per tank)
  • Grounding Kit Assembly (Required with Filtration) to Ground the Filters to the System Frame, the System Frame to an Earth Ground and the Transfer Unit to the Supply Drum
  • Stainless Steel Suction Tube Assemblies with Reinforced PVC Suction Hose. One per tank
  • 46" (w) x 61" (d) x 88" (h)

FEATURES

  • Dedicated pump and filter per tank - to prevent cross contamination oflubricants and ensure maximum cleanliness
  • Electrical Protection - circuit breakers, surge protectors and motor overload protection all ensure safe and effective operation in demanding environments
  • Spill Containment - built in spill containment for EPA SPCC compliance
  • Pre-assembled - delivered pre-assembled with detailed owner's manual including installation instructions
  • Fully welded and powder coated structural steel frameset for maximum durability in industrial environments
  • 12 Gauge Aluminized Steel Tanks available in 4 sizes and 10 colors - 30, 65, 120 and 240 gallons
  • Flame Resistant Fire Suppression Hose Assemblies - MSHA-CFR30 rated
