D Series Platform Cart (1 x 70 Gal Tank)


Lubrigard D Series Platform Cart (1 x 70 Gal Tank)

0 ratings | Submit a rating
$9,052.73  Cart is in US Dollar
Designed to Accommodate Various Tanks

D Series Platform Cart

Brand: Lubrigard
Part Number:
PT71D5WR72SHSQ40R1




OVERVIEW

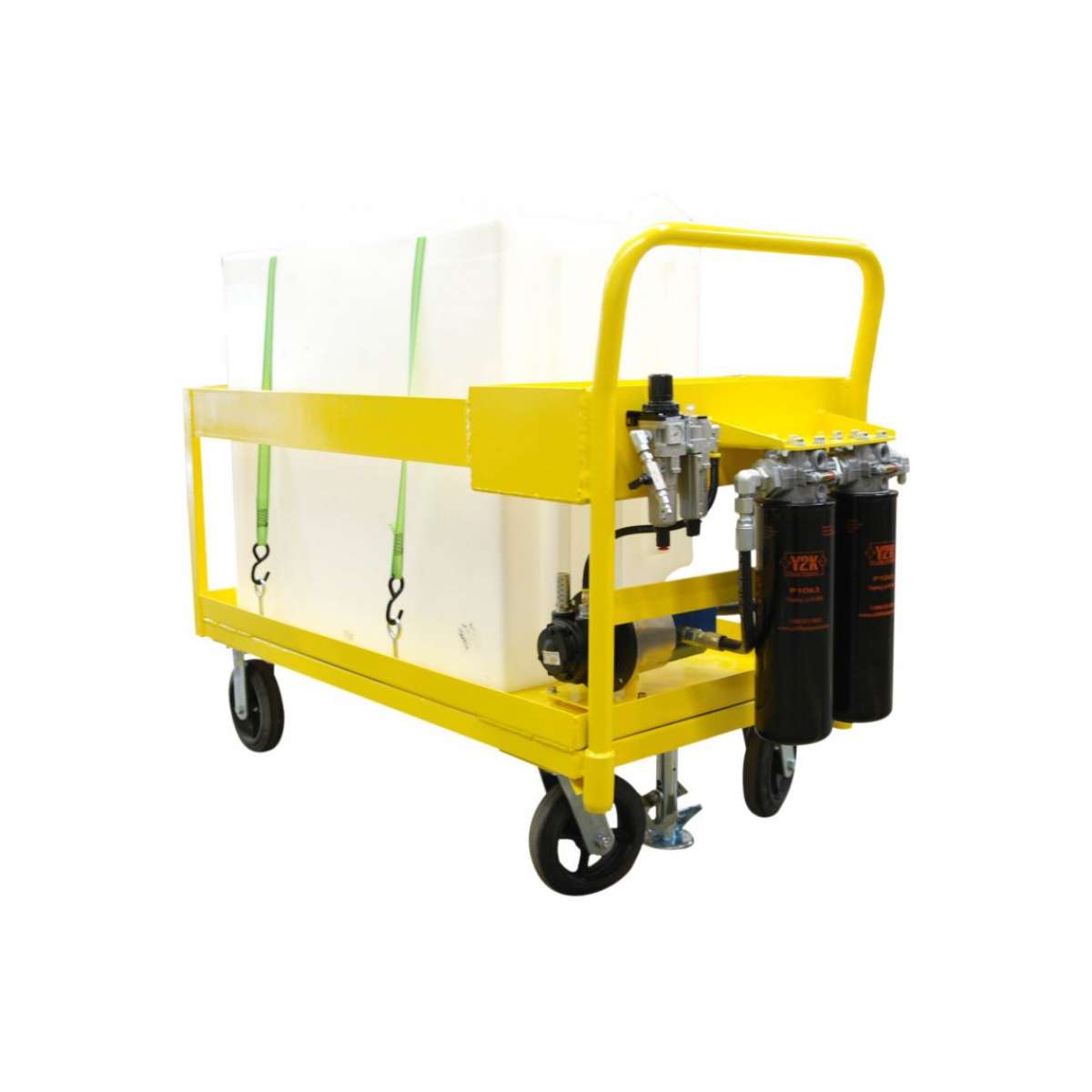

Getting oil from bulk or drum storage and out into the plant is made convenient and easy with the PT-D Platform Cart. Designed to accommodate various tank configurations, the platform cart can be used to deliver multiple oil types to their final destination. An optional oil rack and toolbox makes storage of essential equipment and tools easy to transport. The platform cart has all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All Y2K products are 100% customizable upon request.

Typical Applications:

  • Pre-filtering new oil
  • Transferring oils
  • Topping off reservoirs or containers
  • Dispensing new oil

SPECIFICATIONS

  • 2.5GPM, 1HP Motor
  • 1 each - 70 Gallon totes
  • Standard 7' Hoses (3/4" and 1/2")
  • ISO B QD's (3/4" and 1") 2 ea. 5" x 14" Element
  • Internal Pump Bypass, 150PSI, 40' Hose Reel, Sealed On/Off Switch
  • Includes a tote adapter and desiccant breather
  • NOTE: ITEM MAY NOT BE EXACTLY AS SHOWN

FEATURES

  • Frame: Heavy duty platform frame with 4 wheels, drip pan and utility tray
  • Paint: Multiple color options available
  • Tank(s): 32, 71 and 115 gallon poly tanks available
  • Motor: 1HP, 115vac, 60Hz or Pneumatic Air
  • Filter Heads: Low pressure, aluminum heads
  • Pump: Heavy duty steel gear pump. Available in 2, 5 and 10 GPM
  • Connections: Various quick connect options with steel dust plugs
  • Hoses: 2 ea, 7ft. Clear PVC, steel reinforced hose or hydraulic hose
  • Power Switch: On/Off toggle switch
  • Filter Indicators: Pop-up indicator triggers at 36psid when elements need to be changed
  • Pump Relief: Opens at 150psi
  • Weight: Approx 250lbs (will vary depending on options)
