Membrane Dehydrator for Tanks under 500-600 Gallons


Lubrigard Membrane Dehydrator for Tanks under 500-600 Gallons

0 ratings | Submit a rating
$16,691.10  Cart is in US Dollar
The right tools for the job

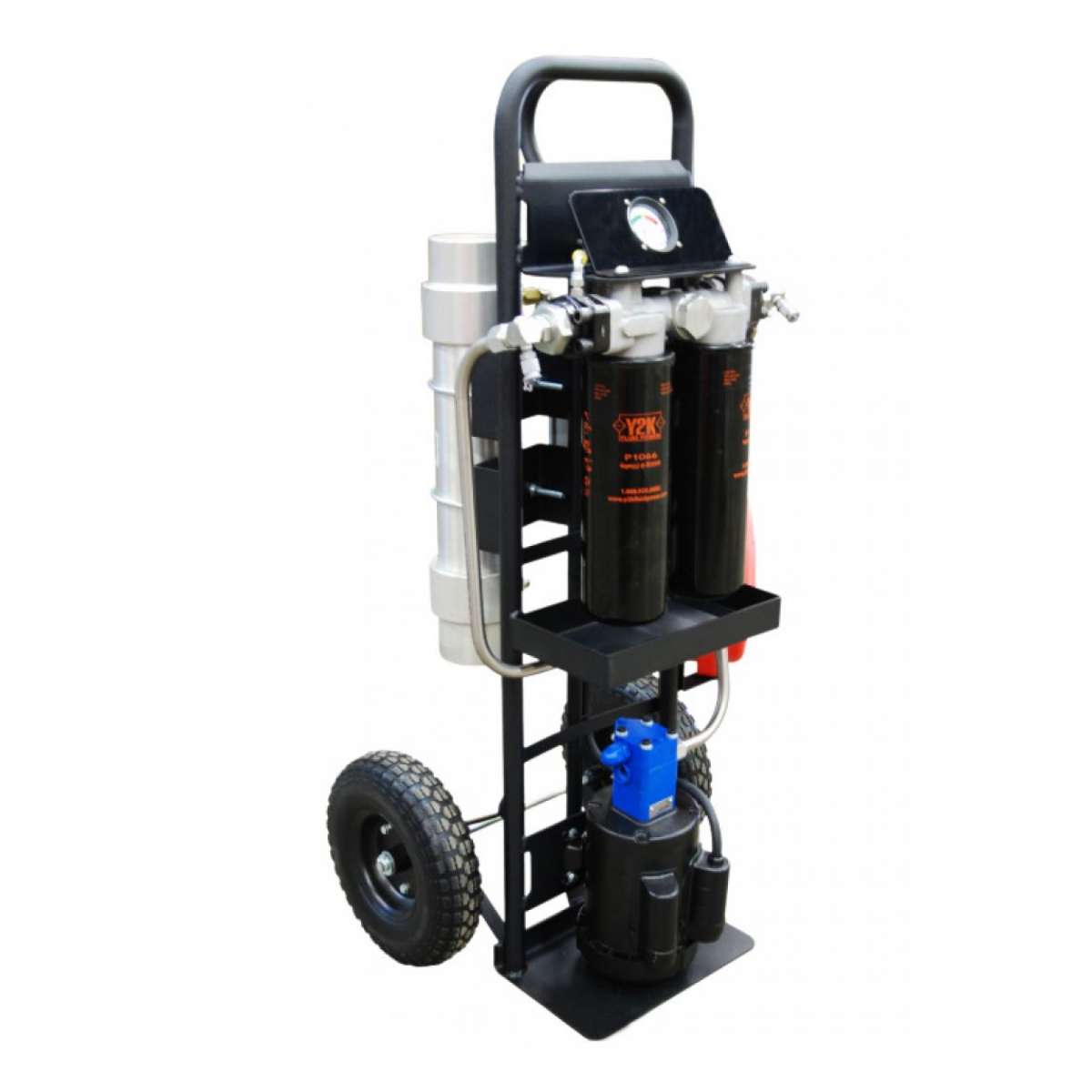

Membrane Dehydrator for Tanks under 500-600 Gallons

Brand: Lubrigard
Part Number:
MBD525775SHSQ40R4
Availability: Please Contact




OVERVIEW

When you need to remove large amounts of water from your reservoirs, but the lack of portability and electrical requirements of a conventional VAC Dehydration system hinders your efforts, Y2K has got you covered. Built with your needs in mind, we designed a unit that is portable and easy to get around while 110 Volts makes it easy to find power. Utilizing a standard filter cart frame, we made our unit easy to transport and move through doors, catwalks and most hard to reach areas a conventional dehydrator cannot fit. The portable vacuum dehydrator has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100ºF within ambient temperature ranges of -15ºF to 180ºF. All Y2K products are 100% customizable upon request. *Membrane system requires compressed air, Requirement of a minimum of 2.5 SCFM at 100 PSIG continuous duty.

SPECIFICATIONS

  • Frame: Carbon steel frame with drip tray; no flat tires
  • Paint: Multiple color options available
  • Motor: 1 HP, 115 Vac, 60 Hz
  • Filter Heads: Dual stage, medium pressure, steel heads
  • Pump: Heavy duty, steel gear pump. Available in 2 and 5 GPM
  • Connections: Various quick connect options available
  • Hoses: 2 ea, 7ft, Clear PVC, steel reinforced suction and discharge hose
  • Power Switch: Sealed On/Off power switch
  • Cord: 40 ft retractable cord reel
  • Membrane Dryer: Patented membrane dryer with hollow fiber membranes
  • Coalescing Pre Filter: Reduces particulates and oil from plant air
  • Air Dryer: Dries incoming plant air to -40 degrees or lower dew point
  • Filter Indicators: Slide bar indicator triggers at 50 psid when elements need to be changed.
  • Pump Relief: Opens at 150 psi
  • Options: Additional options available.
  • Weight Approx. 170 lbs (will vary depending on options)
  • Dimensions: 23"L x 23"W x 52"H
