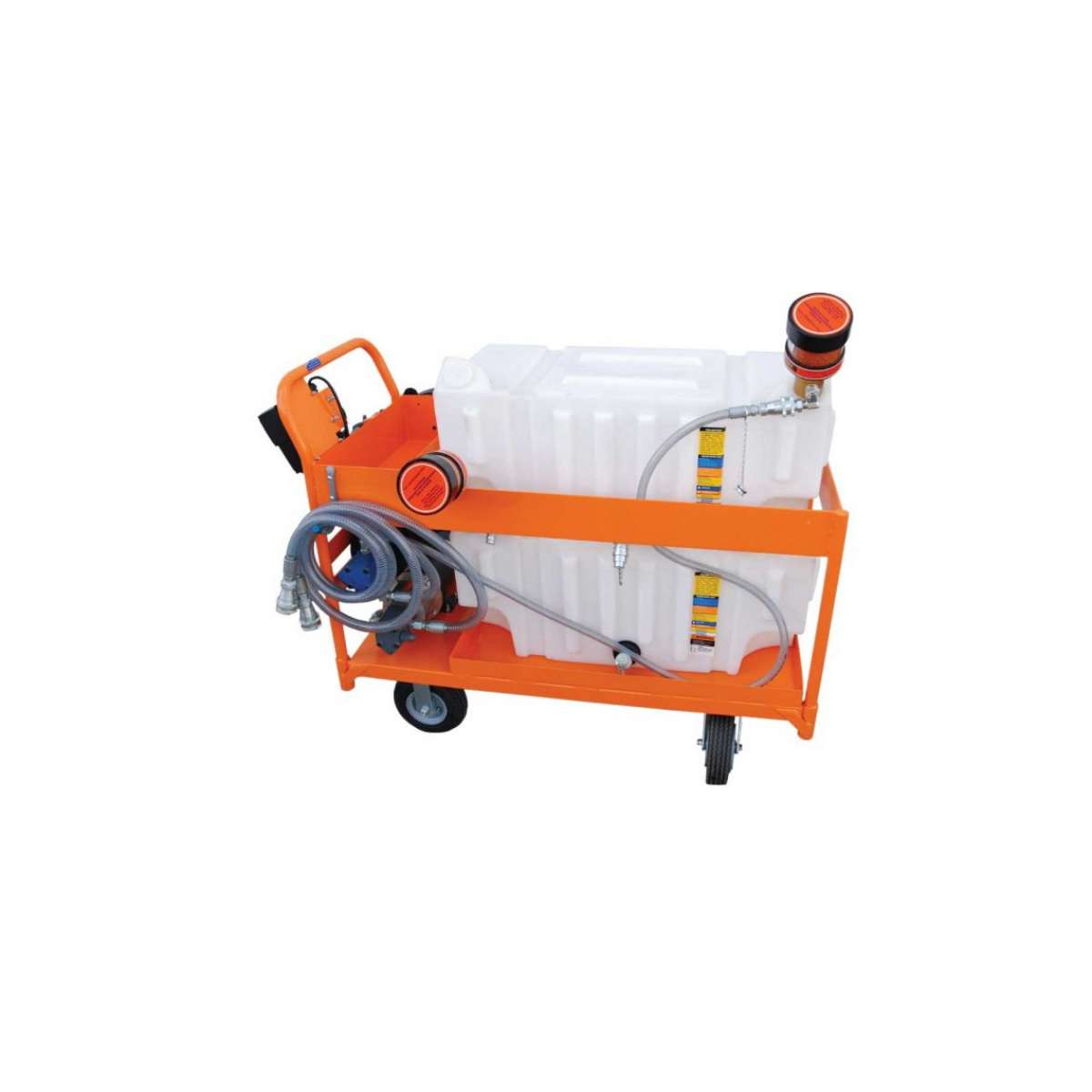

Platform Cart, Air Operated, 2GPM SPCL


Lubrigard Platform Cart, Air Operated, 2GPM SPCL

0 ratings | Submit a rating
$10,327.86  Cart is in US Dollar
Designed to Accommodate Various Tanks

D Series Platform Cart

Brand: Lubrigard
Part Number:
LG-PT3232D574M2SHSQNC4-BD
Availability: Please Contact




OVERVIEW

Getting oil from bulk or drum storage and out into the plant is made convenient and easy with the PT-D Platform Cart. Designed to accommodate various tank configurations, the platform cart can be used to deliver multiple oil types to their final destination. An optional oil rack and toolbox makes storage of essential equipment and tools easy to transport. The platform cart has all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All Y2K products are 100% customizable upon request.

Typical Applications:

  • Pre-filtering new oil
  • Transferring oils
  • Topping off reservoirs or containers
  • Dispensing new oil

SPECIFICATIONS

  • Platform Cart 4 Wheeled, 2 Swivel 2 Rigid Casters W/ 2" Drip Pan Under The Tanks, 24" x 48" L
  • Dual 32 Gallon Translucent Poly Tanks With Level Indication. Secured to frame, And
  • Desiccant Breathers (D101)
  • Floor Lock for Securing While In Use
  • Dual 50 PSI Bypass Filter Heads W/ Color Coded Differential Pressure Indicators
  • 7 Micron Beta 2000 First Stage P1065
  • 4 Micron Beta 2000 P1066
  • Manual Bypass for non-filtering transfer (Waste Tank/Drain)
  • Digital Flow Meter Totalizer
  • Air Operated Vane Style Motor, Includes Filter, Regulator and Lubricator
  • 2 GPM Heavy Duty Cast Iron Gear Pump W/ 150 PSI Relief Valve
  • 7' Suction and Discharge Hoses With ISO B Quick Disconnects
  • Ability to Dispense Fill, and Recirculate the On-Board Tank as Well as Any External Tank Independently
  • Tool Tray for Rags, Jugs and Misc. Tools
  • Powder Coat Color: Industrial Textured Black

FEATURES

  • Frame: Heavy duty platform frame with 4 wheels, drip pan and utility tray
  • Paint: Multiple color options available
  • Tank(s): 32, 71 and 115 gallon poly tanks available
  • Motor: 1HP, 115vac, 60Hz or Pneumatic Air
  • Filter Heads: Low pressure, aluminum heads
  • Pump: Heavy duty steel gear pump. Available in 2, 5 and 10 GPM
  • Connections: Various quick connect options with steel dust plugs
  • Hoses: 2 ea, 7ft. Clear PVC, steel reinforced hose or hydraulic hose
  • Power Switch: On/Off toggle switch
  • Filter Indicators: Pop-up indicator triggers at 36psid when elements need to be changed
  • Pump Relief: Opens at 150psi
  • Weight: Approx 250lbs (will vary depending on options)
