Platform Cart Dual 32 Gallon SPCL


Y2K Platform Cart Dual 32 Gallon SPCL

0 ratings | Submit a rating
$5,794.00  Cart is in US Dollar
Designed to Accommodate Various Tanks

D Series Platform Cart

Brand: Y2K
Part Number:
LG-PT3232YNENENPSHSQNC4-BDZ
Availability: Please Contact




OVERVIEW

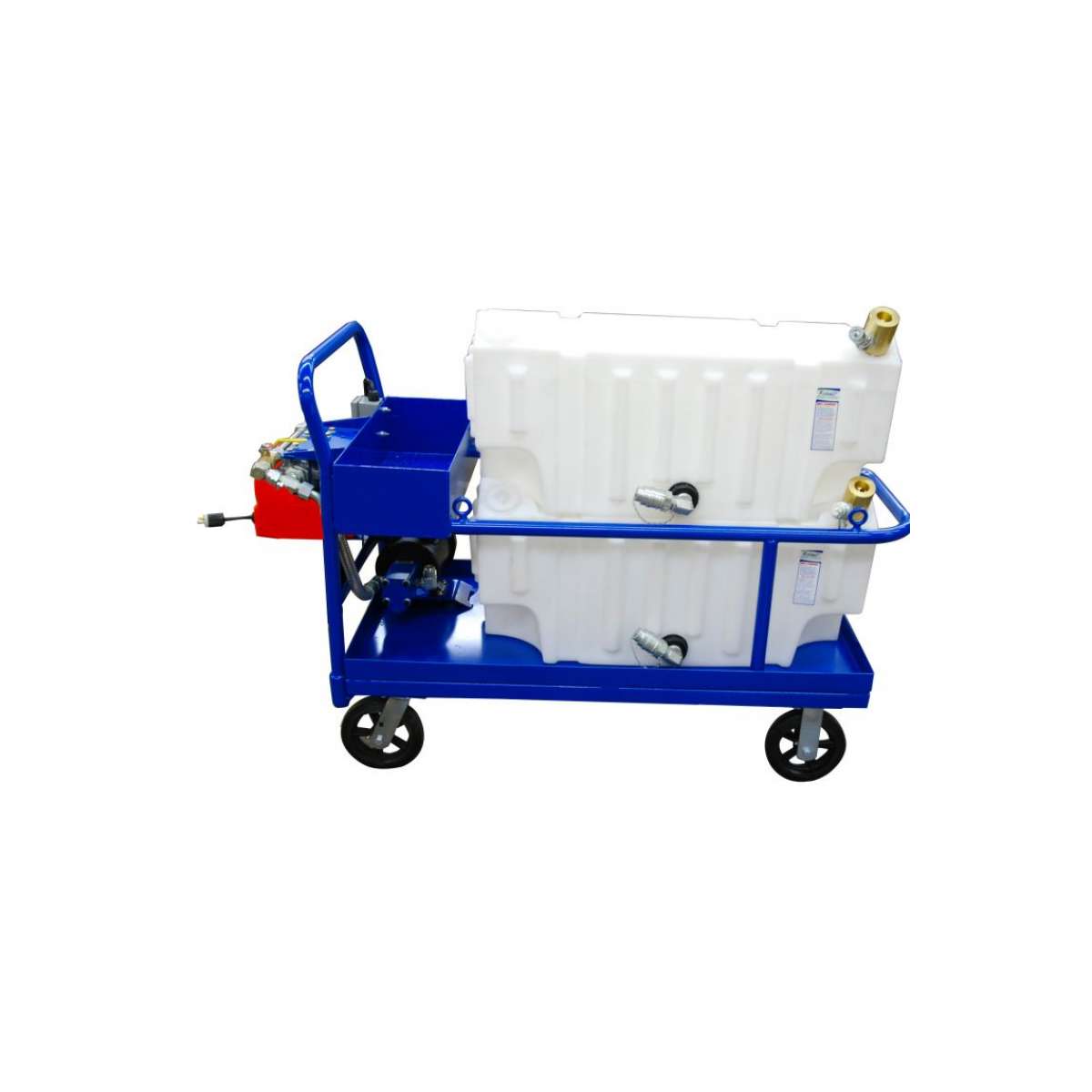

Getting oil from bulk or drum storage and out into the plant is made convenient and easy with the PT-D Platform Cart. Designed to accommodate various tank configurations, the platform cart can be used to deliver multiple oil types to their final destination. An optional oil rack and toolbox makes storage of essential equipment and tools easy to transport. The platform cart has all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All Y2K products are 100% customizable upon request.

Typical Applications:

  • Pre-filtering new oil
  • Transferring oils
  • Topping off reservoirs or containers
  • Dispensing new oil

SPECIFICATIONS

  • Dual 32 Gallon Translucent Poly Tanks With Level Indication. Secured to frame
  • 1" Threaded Breather Adapter (No Breather Included)
  • Floor Lock for Securing While In Use
  • Dual 25 PSI Bypass Filter Heads W/ Pop Differential Pressure Indicators
  • (No Elements)
  • Manual Bypass for non-filtering transfer
  • Digital Flow Meter Totalizer
  • Filter, Regulator and Lubricator (For Customer Installed Air Motor), includes air shutoff valve and standard Pneumatic connection
  • 7' Suction and Discharge Hoses With ISO B Quick Disconnects
  • Tool Tray for Rags, Jugs and Misc. Tools
  • Powder Coat Color: Industrial Textured Black

FEATURES

  • Frame: Heavy duty platform frame with 4 wheels, drip pan and utility tray
  • Paint: Multiple color options available
  • Tank(s): 32, 71 and 115 gallon poly tanks available
  • Motor: 1HP, 115vac, 60Hz or Pneumatic Air
  • Filter Heads: Low pressure, aluminum heads
  • Pump: Heavy duty steel gear pump. Available in 2, 5 and 10 GPM
  • Connections: Various quick connect options with steel dust plugs
  • Hoses: 2 ea, 7ft. Clear PVC, steel reinforced hose or hydraulic hose
  • Power Switch: On/Off toggle switch
  • Filter Indicators: Pop-up indicator triggers at 36psid when elements need to be changed
  • Pump Relief: Opens at 150psi
  • Weight: Approx 250lbs (will vary depending on options)
