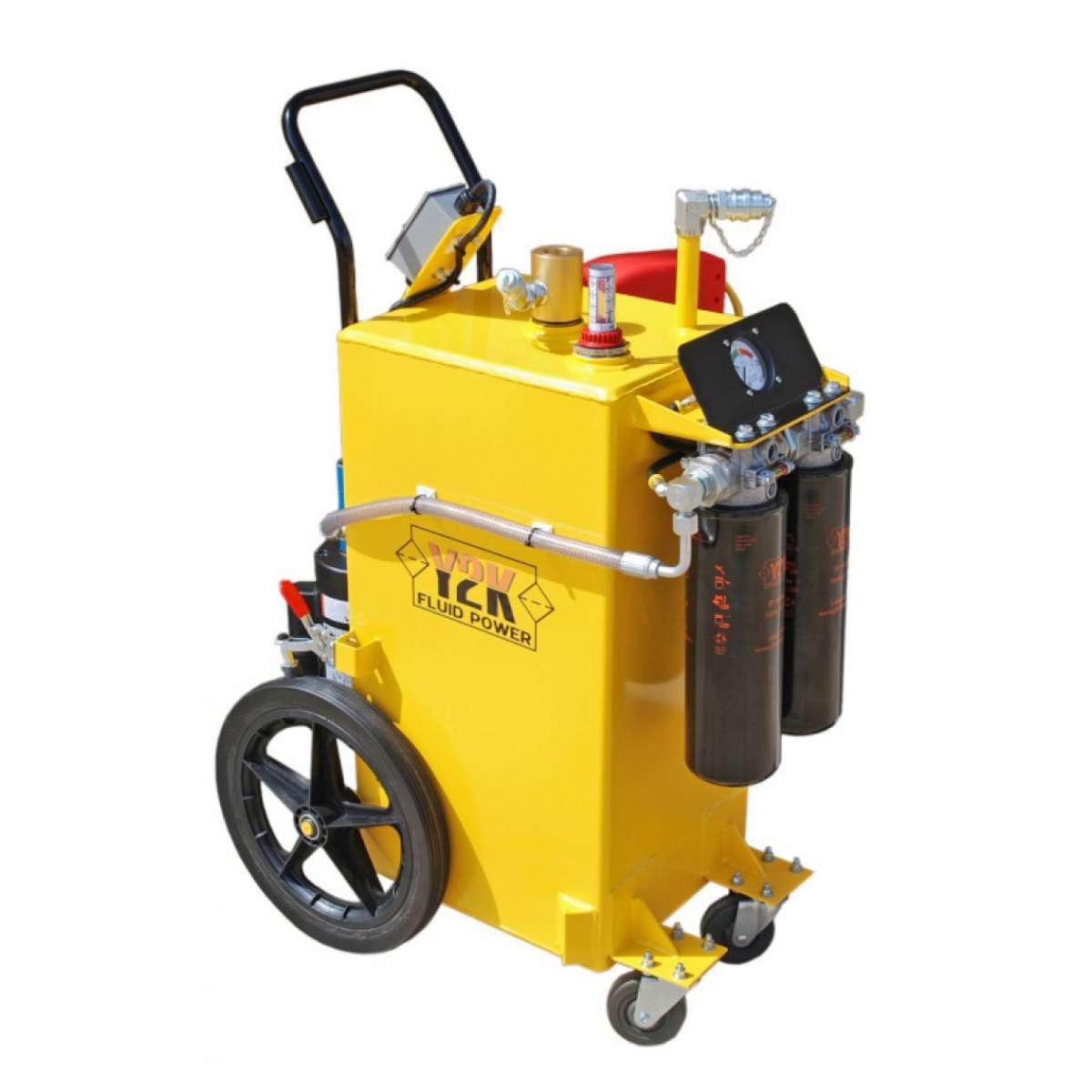

Lubrigard T3 Tote Air Operated No Filtration

The T-3 Tote is the most versatile tote we make. With its 30 gallon tank, this tote makes filtering, transferring, and topping off reservoirs a breeze. It can fill itself, be used as an off-line filter for cleaning different reservoirs, and to pump oil into various containers. This tote has all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All Y2K products are 100% customizable upon request.

Typical Applications:

• Filtering contaminated system
• Flushing new or repaired systems
• Pre-filtering new oil
• Transferring oils
• Topping off reservoirs or containers
• Dispensing new oil

• T3 30 Gallon Tote
• No Filtration
• 1.5 HP Air Operated Motor
• 5 GPM Heavy Duty Cast Iron Gear Pump w/150 PSI Relief
• 7' Suction & Discharge Hydraulic Hoses W/ ISO B Quick Disconnects (3/4" & 1/2")
• Hose Wand Set W/ ISO B Quick Disconnects (3/4" & 1/2")
• Filter, Regulator and Lubricator installed with Air Shutoff valve for Air Motor
• *(100PSI Max Air, Unit is delivered with minimal Fluid in Lubricator, must be filled prior to use with ISO 32, Read Manual for additional details)
• Fluid Level Indicator
• Gold Breather Adapter With Desiccant Breather
• Textured Black Powder Coat

• Frame: 30 Gallon heavy duty tank with 4 wheels, two oversized pneumatic tires and two casters
• Paint: Multiple color options available
• Motor: 1HP, 115vac, 60Hz or Pneumatic Air
• Filter Heads: Medium pressure, steel heads
• Pump: Heavy duty steel gear pump. Available in 2, 5 and 10 GPM
• Connections: Various quick connect options with steel dust plugs
• Hoses: 2 ea, 7ft. Clear PVC, steel reinforced hose or hydraulic hose
• Power Switch: On/Off toggle switch
• Filter Indicators: Slide bar indicator triggers at 50psid when elements need to be changed
• Pump Relief: Opens at 150psi
• Weight: Approx 125lbs (will vary depending on options)
