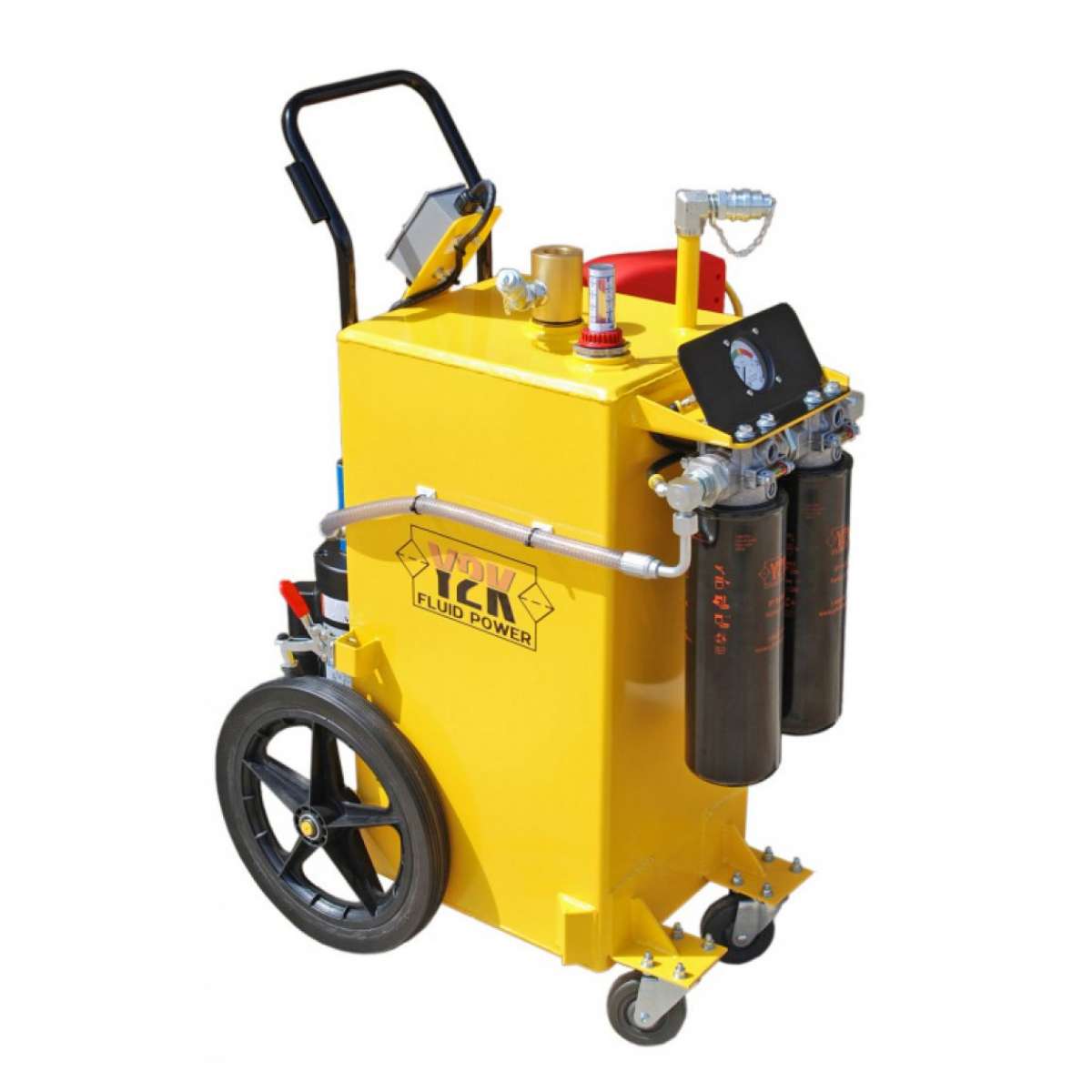

Tote Unit, 1HP 120VAC, 1P, 5GPM Transfer


Lubrigard Tote Unit, 1HP 120VAC, 1P, 5GPM Transfer

1 ratings | Submit a rating
$4,562.50  Cart is in US Dollar
Most Versatile Tote!

D Series 4 Wheel T-3 Tote

Brand: Lubrigard
Part Number:
LG-T3NFNENE5SHSQ40R4-O




OVERVIEW

The T-3 Tote is the most versatile tote we make. With its 30 gallon tank, this tote makes filtering, transferring, and topping off reservoirs a breeze. It can fill itself, be used as an off-line filter for cleaning different reservoirs, and to pump oil into various containers. This tote has all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680) at 100F within ambient temperature ranges of -15F to 150F. All Y2K products are 100% customizable upon request.

Typical Applications:

  • Filtering contaminated system
  • Flushing new or repaired systems
  • Pre-filtering new oil
  • Transferring oils
  • Topping off reservoirs or containers
  • Dispensing new oil

SPECIFICATIONS

  • T3, 30 Gallon Tote
  • No filter heads or Filter elements, just a transfer cart
  • 1HP Motor TEFC 110VAC
  • 5 GPM Heavy Duty Cast Iron Gear Pump w/150 PSi Relief
  • 7' Suction and Discharge Hoses W/ ISO B Quick Disconnects (3/4" & 1/2")
  • 40' Retractable Electric Cord Reel
  • Textured Black Powder Coat
  • Sample Port installed
  • NOTE: ITEM MAY NOT BE EXACTLY AS SHOWN

FEATURES

  • Frame: 30 Gallon heavy duty tank with 4 wheels, two oversized pneumatic tires and two casters
  • Paint: Multiple color options available
  • Motor: 1HP, 115vac, 60Hz or Pneumatic Air
  • Filter Heads: Medium pressure, steel heads
  • Pump: Heavy duty steel gear pump. Available in 2, 5 and 10 GPM
  • Connections: Various quick connect options with steel dust plugs
  • Hoses: 2 ea, 7ft. Clear PVC, steel reinforced hose or hydraulic hose
  • Power Switch: On/Off toggle switch
  • Filter Indicators: Slide bar indicator triggers at 50psid when elements need to be changed
  • Pump Relief: Opens at 150psi
  • Weight: Approx 125lbs (will vary depending on options)
