A drum filter cart carries the filtration and the drum together on one four-wheel frame. Fill from it, filter into it, or transfer through it — without lifting a drum onto a stand or running a separate cart alongside it. Two series, four flow rates, air operated or electric.
A standard filter cart cleans oil that is already in a reservoir. A drum filter cart does that too, but it carries the drum with it — the filtration head, pump, motor and hoses are all mounted to a heavy duty frame built around a drum, on two rigid and two caster wheels.
That makes it the practical choice wherever the oil and the machine are not in the same place: filtering new oil as it comes in, keeping a dedicated drum of clean oil ready for top-ups, or moving filtered oil to equipment that has no room for a cart beside it.
Every model filters through two elements with water removal as standard, runs an internal pump bypass, and uses the same ISO-B quick disconnects and 7 ft hose set as the rest of the range.
D-Series — 5″ × 14″
M-Series — 5.06″ × 10.86″
The two series take different elements — different length, thread and pressure rating — so stock to the series you run. Outside Canada the D-Series water-removal element is P1048WR-USA.
Both series use the same drum cart frame, pump, hoses and connections. They differ in two places: how fine the standard elements filter, and how the electric models are corded.

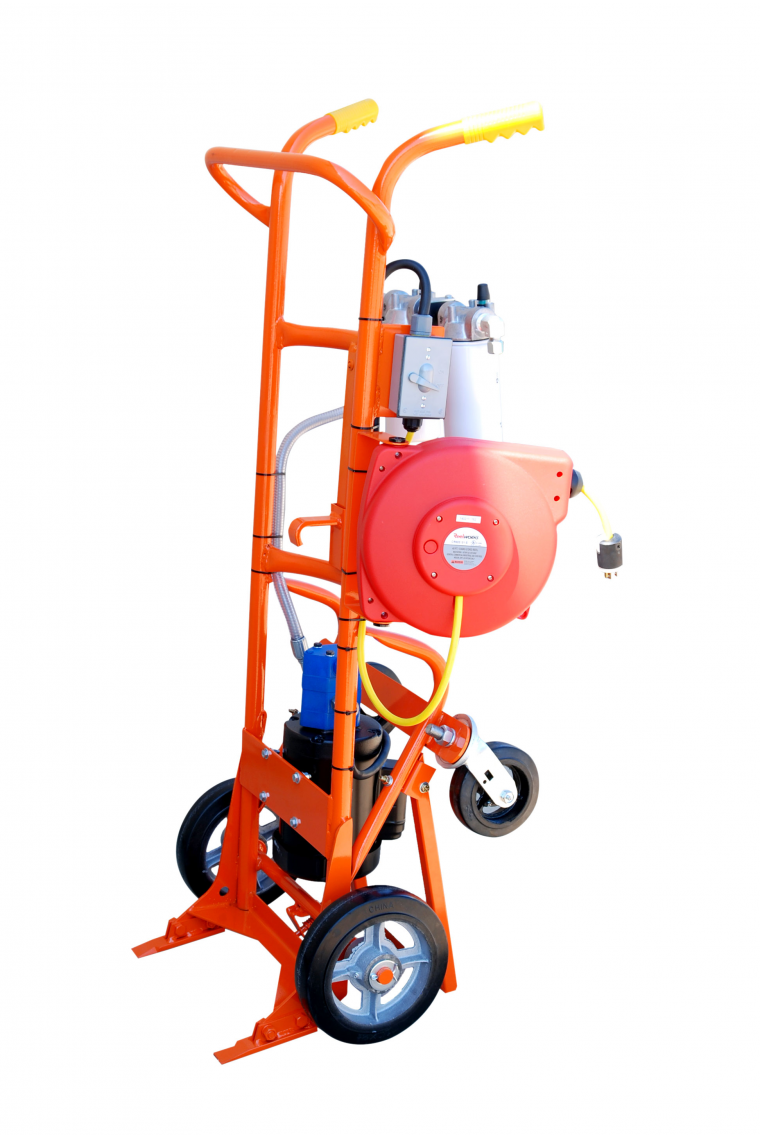

Ships with water-removal and 7 micron elements. Electric models carry a 40 ft retractable cord reel, so the cable stays off the floor as the cart moves around the plant.

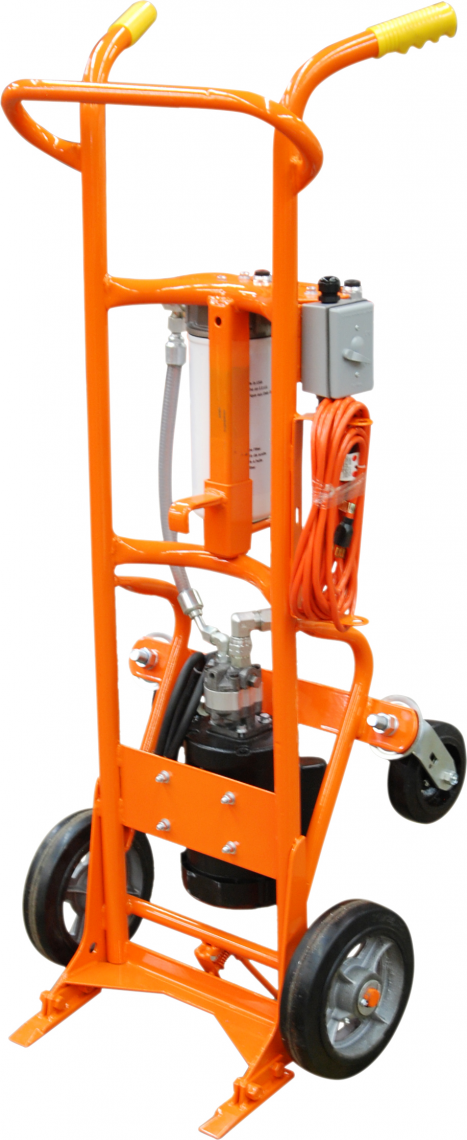

Ships with water-removal and finer 3 micron elements as standard. Electric models use a 25 ft cord in place of the reel, which keeps the cart lighter and simpler.
| Specification | DC-D Electric |
DC-D Air Operated |
DC-M Electric |
DC-M Air Operated |
|---|---|---|---|---|
| Flow rates | 1 / 2 / 5 / 10 GPM | 1 / 2 / 5 / 10 GPM | 1 / 2 / 5 / 10 GPM | 1 / 2 / 5 / 10 GPM |
| Motor | 1 HP electric | 1.5 HP air operated | 1 HP electric | 1.5 HP air operated |
| Air preparation | — | Filter, regulator, lubricator | — | Filter, regulator, lubricator |
| Standard elements | Water removal + 7 micron | Water removal + 7 micron | Water removal + 3 micron | Water removal + 3 micron |
| Internal pump bypass | Yes | Yes | Yes | Yes |
| Cord | 40 ft retractable reel | — runs on shop air | 25 ft | — runs on shop air |
| Switch | Sealed on/off | — | Sealed on/off | — |
| Hose set * | 7 ft suction & return | 7 ft suction & return | 7 ft suction & return | 7 ft suction & return |
| Connections * | ISO-B quick disconnects | ISO-B quick disconnects | ISO-B quick disconnects | ISO-B quick disconnects |
| Frame | Heavy duty drum cart | Heavy duty drum cart | Heavy duty drum cart | Heavy duty drum cart |
| Wheels | 2 rigid + 2 caster | 2 rigid + 2 caster | 2 rigid + 2 caster | 2 rigid + 2 caster |
| Models | 4 | 4 | 4 | 4 |
* Hose and quick-disconnect sizes follow the flow rate: 3/4″ suction & 1/2″ return on 1, 2 and 5 GPM carts; 1″ suction & 3/4″ return on 10 GPM carts.
Every drum filter cart in the range, by series and drive. Select a part number for pricing and full detail.
| Drive | 1 GPM | 2 GPM | 5 GPM | 10 GPM |
|---|---|---|---|---|
| Electric | DCD1SHSQ | DCD2SHSQ | DCD5SHSQ | DCD10SH1SQ1 |
| Air Operated | DCD1MSHSQ | DCD2MSHSQ | DCD5MSHSQ | DCD10MSH1SQ1 |
| Drive | 1 GPM | 2 GPM | 5 GPM | 10 GPM |
|---|---|---|---|---|
| Electric | DCM1SHSQ | DCM2SHSQ | DCM5SHSQ | DCM10SH1SQ1 |
| Air Operated | DCM1MSHSQ | DCM2MSHSQ | DCM5MSHSQ | DCM10MSH1SQ1 |
Tell us your fluid type, drum size and target ISO code — we’ll size the right cart and quote it for your facility.
